Type A sensors (H max = 5mt)
Presence detector On/Off, recessed, single channel (normally open, potential free) with a maximum load of 2 kW (with power factor 0.9), can be controlled remotely, circular detection area Ø 10 m, with Master function.
Integrated twilight sensor.
IP20 protection degree.
On request: programming with remote control code A3023 or with smartphone via accessory code A3047.Presence detector On/Off, ceiling mounted, single channel (normally open, potential free) with a maximum load of 2 kW (with power factor 0.9), can be controlled remotely, circular detection area Ø 10 m, with Master function.
Integrated twilight sensor.
IP20/IP54 rated (exposed part).
On request: programming with remote control code A3023 or with smartphone via accessory code A3047.
On request: IP54 cap code A3024, to obtain total IP54 rating.Presence detector On/Off, recessed, with one DALI‑2 interface, can be controlled remotely, circular detection area Ø 10 m, with Master function.
Integrated light sensor for automatic constant light control.
Drive up to 40 DALI drivers.
IP20 protection degree.
On request: programming/regulation with remote control code A3020 and A3021 or with Smartphone via accessory code A3047.IP54 base for ceiling installation of A DALI‑2 Sensor.
Recessed Slave presence detector, compatible with sensors with Master function, such as Sensor A DALI‑2 and Sensor A on/off, circular detection area Ø 10 m.
IP20 protection degree.

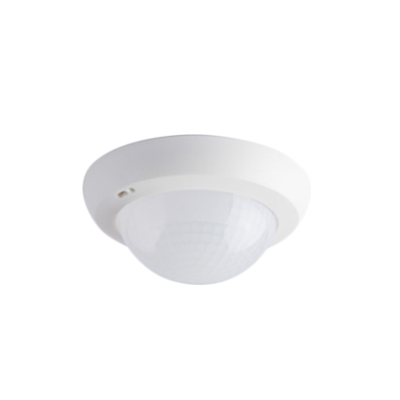

Ceiling mounted Slave presence detector, compatible with sensors with Master function, such as Sensor A DALI‑2 and Sensor A on/off, circular detection area Ø 10 m.
IP20/IP54 rated (exposed part).
On request: IP54 cap code A3024, to obtain total IP54 rating.Type B sensors (H max = 10mt)
Presence detector On/Off, recessed, single channel (normally open, potential free) with a maximum load of 2 kW (with power factor 0.9), can be controlled remotely, circular detection area Ø 24 m, with Master function.
Integrated twilight sensor.
IP20 protection degree.
On request: programming with remote control code A3023 or with smartphone via accessory code A3047.Presence detector On/Off, ceiling mounted, single channel (normally open, potential free) with a maximum load of 2 kW (with power factor 0.9), can be controlled remotely, circular detection area Ø 24 m, with Master function.
Integrated twilight sensor.
IP20/IP54 rated (exposed part).
On request: IP54 cap code A3024, to obtain total IP54 rating.
On request: programming with remote control code A3023 or with smartphone via accessory code A3047.Presence detector On/Off, recessed, with one DALI‑2 interface, can be controlled remotely, circular detection area Ø 24 m, with Master function.
Integrated light sensor for automatic constant light control.
Drive up to 40 DALI drivers.
IP20 protection degree.
On request: programming/regulation with remote control code A3020 and A3021 or with Smartphone via accessory code A3047.IP54 base for ceiling installation of B DALI‑2 Sensor.
Recessed Slave presence detector, compatible with sensors with Master function, such as Sensor B DALI‑2 and Sensor B on/off, circular detection area Ø 24 m.
IP20 protection degree.
Ceiling mounted Slave presence detector, compatible with sensors with Master function, such as Sensor B DALI‑2 and Sensor B on/off, circular detection area Ø 24 m.
IP54 protection degree.
Presence detector, recessed, with two DALI interfaces, can be controlled remotely, circular detection area Ø 24 m, with Master function.
Two integrated light sensors for automatic constant light control.
Drive up to 50 digital electronic drivers for each channel.
IP20 protection degree.
On request: programming/regulation with remote control code A3020 and A3021 or with Smartphone via accessory code A3047.Type B GH sensors (H max = 16mt)

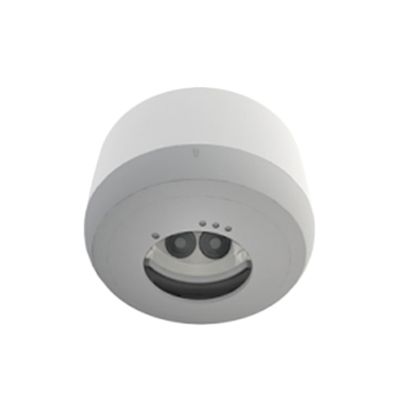

Presence detector with one DALI‑2 interface, ceiling mounted, for mounting at great heights, transverse detection area Ø 30 m, with Master function.
Maximum installation height 16 m.
Telescopic external light sensor for precise light measurement in a single application.
Integrated twilight sensor.
IP54 protection degree.
On request: programming with remote control code A3038 or with smartphone via accessory code A3047.Code
Item
A3038
IR DALI GH - Programmer
IR remote control for programmer, compatible with DALI sensors (incompatible with On‑Off and Slave sensors), especially for long distances.
Presence detector On/Off, recessed, special for corridors, single channel (normally open, potential free) with a maximum load of 2 kW (with power factor 0.9), can be controlled remotely, detection area tangential Ø 40 m, frontal Ø 20 m, with Master function.
Maximum installation height 2.70 m.
Integrated twilight sensor.
IP20 protection degree.
On request: programming with remote control code A3023 or with smartphone via accessory code A3047.Presence detector On/Off, ceiling mounted, special for corridors, single channel (normally open, potential free) with a maximum load of 2 kW (with power factor 0.9), can be controlled remotely, detection area tangential Ø 40 m, frontal Ø 20 m, with Master function.
Maximum installation height 2.70 m.
Integrated twilight sensor.
IP54 protection degree.
On request: programming with remote control code A3023 or with smartphone via accessory code A3047.Corridors detection area lens for B DALI‑2 recessed and/or surface mounted sensors.
Recessed Slave presence detector, special for corridors, compatible with sensors with Master function, such as Sensor Corr DALI and Sensor Corr on/off, tangential detection area Ø 40 m, frontal Ø 20 m.
IP20 protection degree.
Maximum installation height 2.70 m.
Ceiling mounted Slave presence detector, special for corridors, compatible with sensors with Master function, such as DALI Corr sensor and Corr sensor on/off, tangential detection area Ø 40 m, frontal Ø 20 m.
IP54 protection degree.
Maximum installation height 2.70 m.

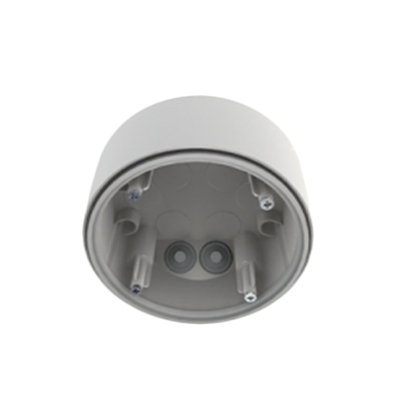

Cap for ceiling mounted sensors
Cap for ceiling mounted sensors, to obtain IP54 rating (total) for H 15 mm.
Compatible with the following sensors:
- Sensor A on/off ext code A3014
- Sensor B on/off ext code A3019
- Sensor A SLAVE ext code A3026
IR remote control for programmer, compatible with DALI sensors (incompatible with On‑Off and Slave sensors).
IR remote control for user, compatible with DALI sensors (incompatible with On‑Off and Slave sensors).
Code
Item
BLE-IR - Adapter for Smartphone
BLE‑IR adapter for Smartphones, compatible with all programmable sensors.
Free App available for Android and iOS devices.
IR remote control for programming on/off sensors incompatible with DALI and Slave sensors).
