3F 66
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
8357
3F 66 1 LED 6 II
9
774
4000
>80
255x176x344
65
8358
3F 66 2 LED 12 II
15
1530
4000
>80
255x176x344
65
ILLUMINOTECHNICAL

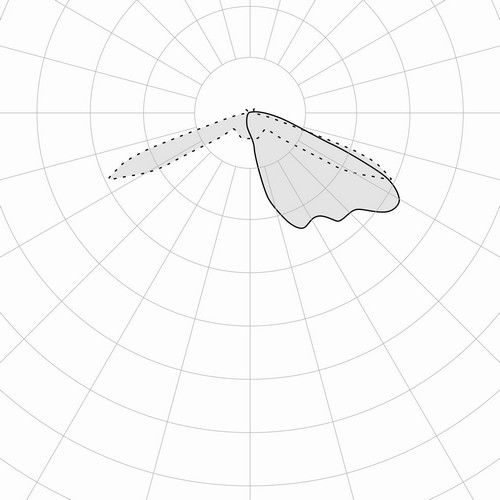

Downward bilateral distribution.
Lifetime (L70/B10): 50000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
LED modules.
Colour initial tolerance (MacAdam): SDCM 4.
MECHANICAL
Self‑extinguishing V2 polycarbonate housing, injection moulded, RAL 7035 grey.
Flow recuperator in specular aluminium with superficial titanium‑magnesium treatment, non‑iridescent.
Transparent methacrylate (PMMA) diffuser, injection moulded, with smooth outer surface and differentiated prismatic inner surface.
Sealing gaskets between housing and diffuser in ecological anti‑aging EPDM.
Diffuser safety seal with 4 latches attaching it to the housing, in stainless steel.
ELECTRICAL
In compliance with EN 60598‑1.
Double insulated cables.
Line entry at rear through rubber seal or at side after drilling.
Class II.
APPLICATIONS
Wall mounting, particularly suitable for outdoor lighting of civil and industrial buildings, porticos, underpasses and walkways.
Downwards bilateral controlled distribution allows to optimise the perimeter lighting uniformity of buildings.
Control of light pollution, in accordance with the legislative requirements in force.
ON REQUEST
- different powers or colour temperatures
- emergency versions
