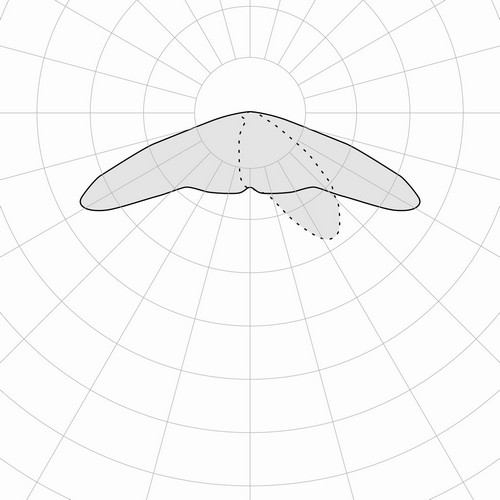

3F Manta Wide
Asymmetric distribution with wide bilateral.
This model is available in two different Protection Classes against electric shock.Class I ‑ ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
7400
3F Manta AN 30/730 WIDE
34.5
5115
3000
>70
660x440x166
66
7001
3F Manta AN 50/730 WIDE
53
6950
3000
>70
660x440x166
66
7002
3F Manta AN 75/730 WIDE
78
9717
3000
>70
660x440x166
66
7003
3F Manta AN 100/730 WIDE
103
13101
3000
>70
660x440x166
66
7004
3F Manta AN 135/730 WIDE
149
17458
3000
>70
660x440x166
66
7401
3F Manta AN 30/830 WIDE
34.5
4572
3000
>80
660x440x166
66
7022
3F Manta AN 50/830 WIDE
53
6227
3000
>80
660x440x166
66
7023
3F Manta AN 75/830 WIDE
78
8707
3000
>80
660x440x166
66
7024
3F Manta AN 100/830 WIDE
103
11738
3000
>80
660x440x166
66
7025
3F Manta AN 135/830 WIDE
149
15642
3000
>80
660x440x166
66
Class II ‑ ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
7402
3F Manta AN 30/730 II WIDE
34.5
5115
3000
>70
660x440x166
66
7026
3F Manta AN 50/730 II WIDE
53
6950
3000
>70
660x440x166
66
7027
3F Manta AN 75/730 II WIDE
78
9717
3000
>70
660x440x166
66
7028
3F Manta AN 100/730 II WIDE
103
13101
3000
>70
660x440x166
66
7029
3F Manta AN 135/730 II WIDE
149
17458
3000
>70
660x440x166
66
7403
3F Manta AN 30/830 II WIDE
34.5
4572
3000
>80
660x440x166
66
7030
3F Manta AN 50/830 II WIDE
53
6227
3000
>80
660x440x166
66
7031
3F Manta AN 75/830 II WIDE
78
8707
3000
>80
660x440x166
66
7032
3F Manta AN 100/830 II WIDE
103
11738
3000
>80
660x440x166
66
7033
3F Manta AN 135/830 II WIDE
149
15642
3000
>80
660x440x166
66

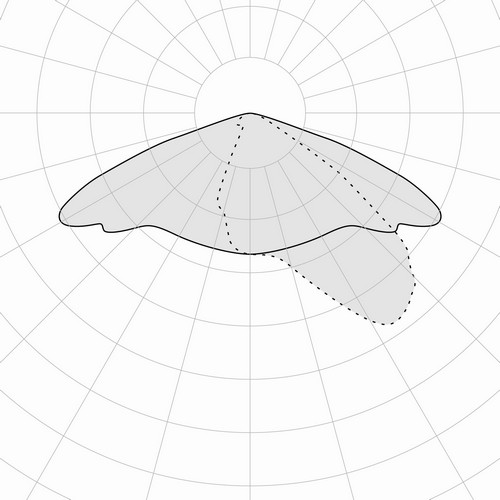

3F Manta Medium
Asymmetric distribution with medium bilateral.
This model is available in two different Protection Classes against electric shock.Class I ‑ ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
7404
3F Manta AN 30/730 MEDIUM
34.5
5087
3000
>70
660x440x166
66
7009
3F Manta AN 50/730 MEDIUM
53
6912
3000
>70
660x440x166
66
7010
3F Manta AN 75/730 MEDIUM
78
9663
3000
>70
660x440x166
66
7011
3F Manta AN 100/730 MEDIUM
103
13028
3000
>70
660x440x166
66
7012
3F Manta AN 135/730 MEDIUM
149
17360
3000
>70
660x440x166
66
7020
3F Manta AN 185/730 MEDIUM
195
22451
3000
>70
660x440x166
66
7405
3F Manta AN 30/830 MEDIUM
34.5
4547
3000
>80
660x440x166
66
7035
3F Manta AN 50/830 MEDIUM
53
6193
3000
>80
660x440x166
66
7036
3F Manta AN 75/830 MEDIUM
78
8658
3000
>80
660x440x166
66
7037
3F Manta AN 100/830 MEDIUM
103
11673
3000
>80
660x440x166
66
7038
3F Manta AN 135/830 MEDIUM
149
15555
3000
>80
660x440x166
66
7039
3F Manta AN 185/830 MEDIUM
195
20116
3000
>80
660x440x166
66
Class II ‑ ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
7406
3F Manta AN 30/730 II MEDIUM
34.5
5087
3000
>70
660x440x166
66
7040
3F Manta AN 50/730 II MEDIUM
53
6912
3000
>70
660x440x166
66
7041
3F Manta AN 75/730 II MEDIUM
78
9663
3000
>70
660x440x166
66
7042
3F Manta AN 100/730 II MEDIUM
103
13028
3000
>70
660x440x166
66
7043
3F Manta AN 135/730 II MEDIUM
149
17360
3000
>70
660x440x166
66
7044
3F Manta AN 185/730 II MEDIUM
195
22451
3000
>70
660x440x166
66
7407
3F Manta AN 30/830 II MEDIUM
34.5
4547
3000
>80
660x440x166
66
7045
3F Manta AN 50/830 II MEDIUM
53
6193
3000
>80
660x440x166
66
7046
3F Manta AN 75/830 II MEDIUM
78
8658
3000
>80
660x440x166
66
7047
3F Manta AN 100/830 II MEDIUM
103
11673
3000
>80
660x440x166
66
7048
3F Manta AN 135/830 II MEDIUM
149
15555
3000
>80
660x440x166
66
7049
3F Manta AN 185/830 II MEDIUM
195
20116
3000
>80
660x440x166
66

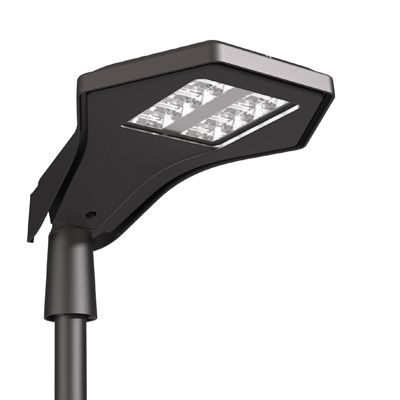

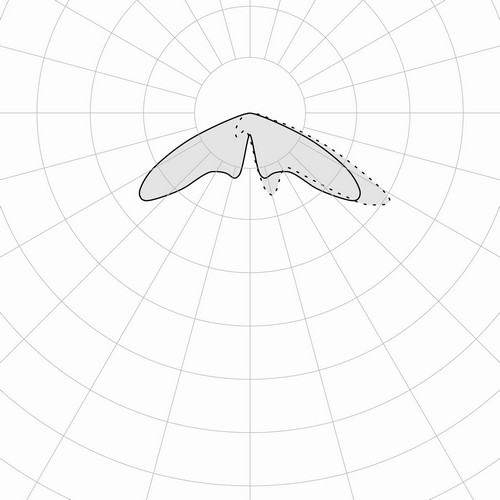

3F Manta Front
Asymmetric distribution with deep bilateral.
This model is available in two different Protection Classes against electric shock.Class I ‑ ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
7408
3F Manta AN 30/730 FRONT
34.5
4578
3000
>70
660x440x166
66
7051
3F Manta AN 50/730 FRONT
51
7242
3000
>70
660x440x166
66
7052
3F Manta AN 75/730 FRONT
76
10266
3000
>70
660x440x166
66
7053
3F Manta AN 100/730 FRONT
105
12830
3000
>70
660x440x166
66
7054
3F Manta AN 135/730 FRONT
141
15913
3000
>70
660x440x166
66
7409
3F Manta AN 30/830 FRONT
34.5
4092
3000
>80
660x440x166
66
7055
3F Manta AN 50/830 FRONT
51
6474
3000
>80
660x440x166
66
7056
3F Manta AN 75/830 FRONT
76
9177
3000
>80
660x440x166
66
7057
3F Manta AN 100/830 FRONT
105
11969
3000
>80
660x440x166
66
7058
3F Manta AN 135/830 FRONT
141
14226
3000
>80
660x440x166
66
Class II ‑ ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
7410
3F Manta AN 30/730 II FRONT
34.5
4578
3000
>70
660x440x166
66
7059
3F Manta AN 50/730 II FRONT
51
7242
3000
>70
660x440x166
66
7060
3F Manta AN 75/730 II FRONT
76
10266
3000
>70
660x440x166
66
7061
3F Manta AN 100/730 II FRONT
105
12830
3000
>70
660x440x166
66
7062
3F Manta AN 135/730 II FRONT
141
15913
3000
>70
660x440x166
66
7411
3F Manta AN 30/830 II FRONT
34.5
4092
3000
>80
660x440x166
66
7063
3F Manta AN 50/830 II FRONT
51
6474
3000
>80
660x440x166
66
7064
3F Manta AN 75/830 II FRONT
76
9177
3000
>80
660x440x166
66
7065
3F Manta AN 100/830 II FRONT
105
11969
3000
>80
660x440x166
66
7066
3F Manta AN 135/830 II FRONT
141
14226
3000
>80
660x440x166
66
ILLUMINOTECHNICAL
Asymmetric distribution with frontal, wide or medium bilateral.
No higher ULOR emission.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Squared LED module with special protection against aggressive chemically‑volatile substances, for standard LED technology.
Colour initial tolerance (MacAdam): SDCM 5.
MECHANICAL
Aerodynamically‑shaped die‑cast aluminium double‑shell body for low wind resistance (frontal: 0.0446 m²; lateral: 0.0505 m²), equipped with fins to optimize the cooling of the internal components.
Shell closure using stainless steel screws on stainless steel bushings, with hinged opening for easy access to the wiring compartment, equipped with system against accidental closure.
Polyester powder coating with degreasing pre‑treatment and phosphate layer deposit on the metal, UV stabilised, corrosion resistant, anthracite colour, salt spray resistance ISO 9227 >1000 h.
Parabolic cellular optics with total recovery, entirely made of semi‑specular high reflection aluminium with titanium and magnesium surface treatment, to maintain optical performance over time.
Polyurethane foam seals, ecological, anti‑aging, installed using a continuous automatic process with no joints.
VT extra transparent tempered glass diffuser, 4 mm thick, non‑combustible.
Stainless steel internal and external screws.
ELECTRICAL
In compliance with EN 60598‑1, EN 60598‑2‑3.
Flicker: <10%.
Safety break switch to shut off the power supply when opening the device.
Insulation voltage 6kV via Sourge Protector.
SPD type 2+3 (combined) device to protect against voltage surges up to 10 kV in common and differential mode.
Thermal protection of the LED module via NTC sensor (Negative Temperature Coefficient).
M20x1.5 IP68 nylon cable gland for feeding input (cables with an min‑max diameter 6‑13mm).
Pressure compensating valve with anti‑condensation effect.
INSTALLATION
Pole or wall mounted using always necessary accessories (see accessories).
APPLICATIONS
Ambient temperature from ‑30°C to +45°C.
Outdoor environments, general lighting, work and roadway lighting, transit areas and building perimeters, parking lots, trade fairs.
Control of light pollution, in accordance with the legislative requirements in force.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- wiring: DALI, CLO, D1‑10V, Wireless
- Customised Virtual Midnight up to 5 independent intervals / levels
- watertight socket / plug connectors
Code
Item
A0439
Pole mounting diameter 60mm
A0440
Pole mounting diameter 76mm
Pole mount in die‑cast aluminium with the same paint treatment as the body (for Ø 60 mm and Ø 76 mm poles) equipped with special teeth for adjusting the inclination on the head of the device by ± 20° with an adjustment pitch of 5°.
Possibility of installing on vertical pole (pole head) and horizontal pole (arm).
Mounting on the device using the supplied stainless steel screws on self‑locking stainless steel nuts.
Not suitable for fixing on fibreglass pole.Code
Item
A0441
Reducer from 76 mm to 60 mm
Reducer in galvanised steel, suitable for poles with a diameter of 76 mm.
To install this accessory, it is always necessary to use the pole connection code A0439.Code
Item
A01480
Fixed position wall bracket
Galvanised steel bracket for fixing on flat facades.
3 mm thick and 200 mm long arm.
Powder coated polyester paint, anthracite colour.
This bracket DOES NOT allow adjustment of the inclination of the product.
Options on request: painting in different RAL colour.Code
Item
A01479
Wall bracket 15° diam 60mm
Galvanised steel bracket for fixing on flat facades.
Arm length 250 mm, diameter 60 mm, inclination of 15°.
This bracket allows adjustment of the inclination of the product.
To install this accessory, it is always necessary to use the pole connection code A0439.
Options on request: painting in RAL colours / 500 mm outreach / horizontal pole.Code
Item
A01481
Corner wall bracket 15° diam 60mm
Galvanised steel bracket for fixing on the corner between facades.
Arm length 250 mm, diameter 60 mm, inclination of 15°.
This bracket allows adjustment of the inclination of the product.
To install this accessory, it is always necessary to use the pole connection code A0439.
Options on request: painting in RAL colours / 500 mm outreach / horizontal pole.
