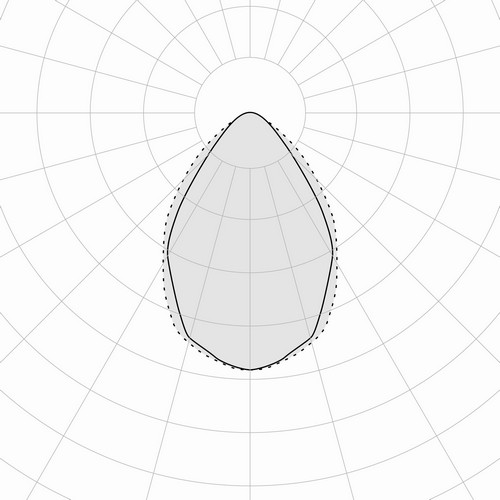

L 560 2S
Code 270935
L<1000 cd/m² 65°
1x ‑ Average luminance <1000 cd/m² for radial angles >65°.
2x ‑ Average luminance <1500 cd/m² for radial angles >65°.
2S parabolic louvre in semi‑specular aluminium, non‑reflecting, with transverse blades closed at the top.
Prismatic methacrylate (PMMA) diffuser for total shielding of the louvre compartment.
Film protective against dust and finger marks, adhesive, attached to louvre.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
270931
L 561x12W LED 2S 221x647
14
1539
4000
>80
647x221x95
20
270933
L 561x24W LED 2S 221x1256
27
2906
4000
>80
1256x221x95
20
270937
L 562x12W LED 2S 221x647
28
2937
4000
>80
647x221x95
20
270935
L 561x30W LED 2S 221x1556
34
3637
4000
>80
1556x221x95
20
270939
L 562x24W LED 2S 221x1256
54
5547
4000
>80
1256x221x95
20
270941
L 562x30W LED 2S 221x1556
66
6943
4000
>80
1556x221x95
20

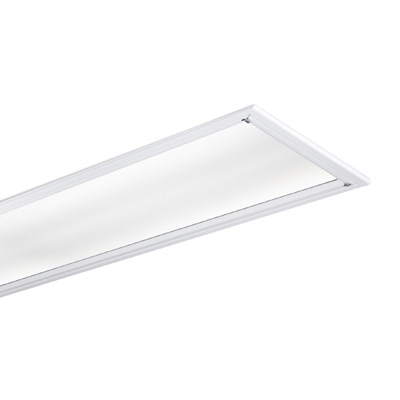

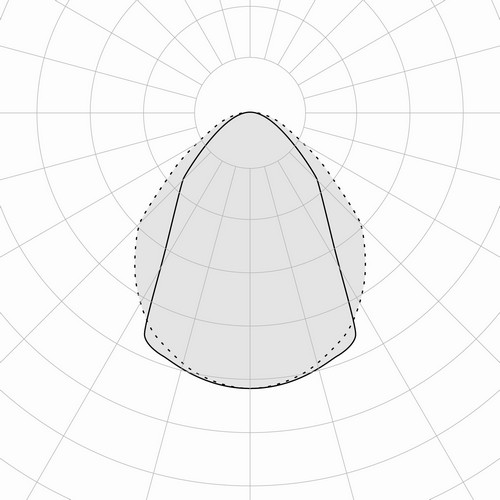

L 560 SP
SP transparent methacrylate (PMMA) diffuser, prismatic exterior, anti‑glare, locked to the prepainted white aluminium perimeter frame with sealing gasket, hinged opening.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
270957
L 561x12W LED SP 221x647
14
1554
4000
>80
647x221x95
54
270959
L 561x24W LED SP 221x1256
27
2935
4000
>80
1256x221x95
54
270963
L 562x12W LED SP 221x647
28
3047
4000
>80
647x221x95
54
270961
L 561x30W LED SP 221x1556
34
3674
4000
>80
1556x221x95
54
270965
L 562x24W LED SP 221x1256
54
5755
4000
>80
1256x221x95
54
270967
L 562x30W LED SP 221x1556
66
7202
4000
>80
1556x221x95
54
ILLUMINOTECHNICAL
Direct symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing in galvannealed steel, painted in white epoxy‑polyester.
Attention: before ordering these products, we ask you to check the Installation instructions if the type of installation requires accessory brackets.ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
INSTALLATION
Slat ceiling installation.
APPLICATIONS
2S versionEnvironments: with VDTs, schools, offices.
SP versionEnvironments where demanding visual tasks are performed and soft diffuse light is required for optimal visual comfort and total shielding of the light source.
ON REQUEST
- parabolic louvres 2M, 2MG, 2US, 3AO
- different power levels, colour rendering indices and colour temperatures
- diffuser in SMP microprismatic methacrylate (PMMA) or SP polycarbonate, Selfextinguishing V2
- wiring: dimmable, CLO
- emergency versions
Code
Item
A0177
15ZH Brackets - L320-L350-L560
The pack contains 4 pieces.Fixing bracket in galvanised steel.
Pack for 1 luminaire.
Brackets for lay‑in installation on load bearing side profiles parallel to the luminaire with louvre (min. adjustment 45 mm, max 72 mm) with diffuser (min. adjustment 27 mm, max 65 mm).Code
Item
A0170
15BS Brackets - L320-L400-L560
The pack contains 4 pieces.Fixing bracket in galvanised steel for ceiling pull‑up installation.
Pack for 1 luminaire.
Brackets for lay‑in installation on load bearing side profiles parallel to the luminaire with louvre (min. adjustment 18 mm, max 45 mm) with diffuser (min. adjustment 0 mm, max 40 mm).Code
Item
A0174
15DP Brackets - L560
The pack contains 4 pieces.Head fixings bracket for installation of the luminaire on load bearing structures (transverse by the luminaire).
Pack for 1 luminaire.
The bracket protruding 55 mm beyond the head side.
Excursion min. 55 mm, max. 75 mm.
Not suitable for diffused light recessed luminaires.Code
Item
A0175
15GF Brackets - L560
The pack contains 4 pieces.Head fixings bracket for installation of the luminaire on load bearing structures (transverse by the luminaire).
Pack for 1 luminaire.
The bracket protruding 60 mm beyond the head side.
Excursion min. 37 mm, max. 55 mm.Code
Item
A0176
15XB Brackets - L560
The pack contains 4 pieces.Head fixings bracket for installation of the luminaire on load bearing structures (transverse by the luminaire).
Pack for 1 luminaire.
The bracket protruding 55 mm beyond the head side.
Excursion min. 20 mm, max. 37 mm.
