3F Travetta Tunable White 2MG
Code 10763
L<1000 cd/m² 65°
Variable light intensity and colour temperature.
DALI DT8 electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10763
3F TRAV. LED 2X22W DALI DT8 TW 2MG L1590
50
5800
6236
6236
2700
4000
6500
>80
1590x190x60
20
ILLUMINOTECHNICAL

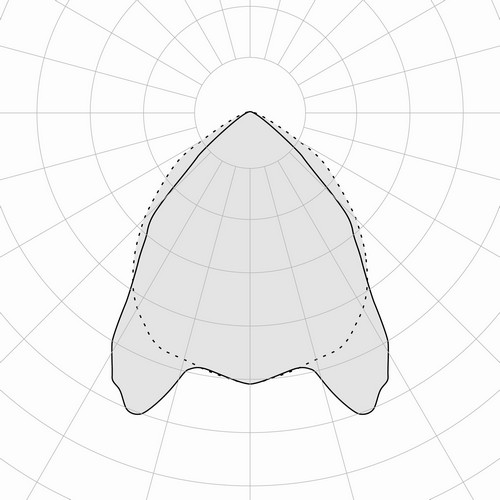

Direct symmetric distribution.
Average luminance <1000 cd/m² for radial angles >65°.
The colour temperature can be adjusted between 2700 K and 6500 K.
Lifetime (L70/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing with squared shape in white painted galvannealed steel, with nonreflecting surface.
2MG parabolic louvre, high efficiency, in specular aluminium with superficial titanium‑magnesium treatment, non‑iridescent, with transverse blades closed at the top.
Opal methacrylate (PMMA) diffuser for total shielding of the louvre compartment.
Film protective against dust and finger marks, adhesive, attached to louvre.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Cable with a DALI DT8 driver.
5‑pole terminal block (L‑N‑PE‑DA/DA) for line connection with connection capacity 2x2.5 mm² per poles.
INSTALLATION
Ceiling mounted or suspension installation.
Thanks to the full compatibility of dimensions, fixing spacing and accessories with the previous fluorescent version, this product becomes the perfect solution for updating existing installations.
APPLICATIONS
Any environments requiring light which aims for the wellness of people.
Environments with VDTs.
Environments where demanding visual tasks are performed and soft diffuse light is required for optimal visual comfort and total shielding of the light source.
LIGHT MANAGEMENT
Tunable White products can be controlled with wired control systems or 3F & Casambi.
ON REQUEST
- different power levels or colour rendering indices
- different dimensions
- housing and accessories in different RAL colours
- emergency versions
Wall‑mounting bracket, in white painted steel.
Connecting bracket to form linear channels or branches of single luminaires, in galvanised steel with upper holes for adjustable suspensions.
Linear connecting element and for branch, between luminaires or between luminaires and wall, to form channels, in steel with accessorizable cover, white colour.
It allows the passage of the power‑supply line.
Concerning the use of connecting elements in false ceilings 600x600, see installation.
On request: elements of desired length.
Connecting elements for false ceiling 625x625.Branching in correspondence with the steel linear connecting elements with a white colour accessory cover.
It allows the passage of the power‑supply line.
The 190x190 linear connecting element can also be used for T junctions (request a bracket code A0875) and X junctions (request two brackets code A0875).
To obtain an excellent T or X junction for connecting elements of a false ceiling with 600x600 visible profiles, the combination of a 1110 mm linear element with a 460 mm junction and the combination of a 810 mm linear element with a 310 mm junction are recommended.Connecting element between luminaires or between luminaire and wall, white colour, composed of aluminium tube 1.5 m long Ø20 mm, which can be sectioned to any desired length, it allows the passage of the power‑supply line.
Linear connecting element end cap to be used when there are connecting elements at the beginning or end of a channel.
Adjustable suspension with polycarbonate case in white colour, internal bracket in galvanised steel.
Wired version with transparent power‑supply cable 5x1.5 mm².
Stainless steel cables Ø 1.25 mm, length 1 m, leaded at one end with adjusters for coupling on the luminaire.
On request: for suspensions longer than 1 m, it is necessary order stainless steel cables Ø 1,25 mm in spool of 100 m and pack of n° 100 clamps.
Accessory always required for 2200 mm long products.Fixed suspension with white polycarbonate case, internal bracket in galvanised steel.
Wired version with transparent power‑supply cable 5x1.5 mm².
Ø 1.25 mm stainless steel cables leaded at the end for coupling on the luminaire.
Coil of stainless steel cable Ø 1.25 mm, length 100 m.
Clamps in nickel‑plated brass suitable for fixing of steel wire (diameter 1.25 mm 1.5 mm ‑ 2 mm), complete with locking screws.
Code
Item
A0679
5 pole rectangular rose (no cable) WH
Electric supply with white polycarbonate case, internal bracket in galvanised steel.
