3F Zeta D
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10872
3F Zeta D 1x9 LED L605
10
1209
4000
>80
605x62x81
40
10871
3F Zeta D 1x18 LED L1194
20
2419
4000
>80
1194x62x81
40
10875
3F Zeta D 2x9 LED L605
20
2418
4000
>80
605x62x81
40
10870
3F Zeta D 1x22 LED L1489
24.5
3118
4000
>80
1489x62x81
40
10874
3F Zeta D 2x18 LED L1194
40
4838
4000
>80
1194x62x81
40
10873
3F Zeta D 2x22 LED L1489
49
6236
4000
>80
1489x62x81
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10962
3F Zeta D 1x18 LED DALI L1194
20
2419
4000
>80
1194x62x81
40
10961
3F Zeta D 1x22 LED DALI L1489
24.5
3118
4000
>80
1489x62x81
40
10965
3F Zeta D 2x18 LED DALI L1194
40
4838
4000
>80
1194x62x81
40
10964
3F Zeta D 2x22 LED DALI L1489
49
6236
4000
>80
1489x62x81
40
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
10980
3F Zeta D 1x22 LED EP L1489
25.5
3118
4000
>80
1489x62x81
40
10982
3F Zeta D 2x22 LED EP L1489
50
6236
4000
>80
1489x62x81
40
ILLUMINOTECHNICAL

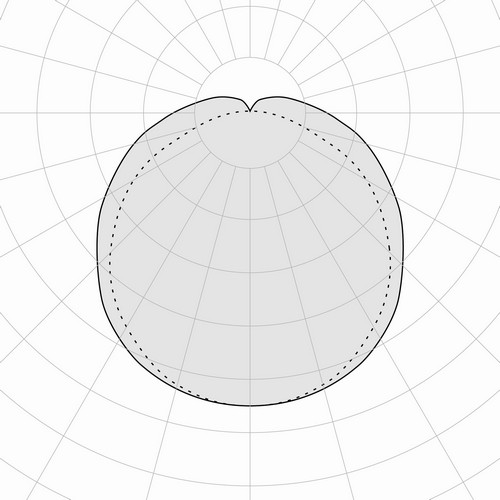

Diffused symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing in hot‑galvanised steel, painted in white polyester, obtained through rolling process.
Light unit in hot‑galvanised steel, painted in white polyester base with fixing springs and retractable safety hooks in stainless steel.
Curved screen in self‑extinguishing polycarbonate, UV stabilised, opal, with smooth outer surface.
End caps in white polycarbonate.
Stainless steel mounting brackets with anti‑slip screws.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
The luminaires with EP permanent emergency wiring on board comply with EN 60598‑2‑22 standard, high risk areas excluded.
INSTALLATION
Ceiling, suspension or wall installation.
APPLICATIONS
Environments: architectural, commercial, transit areas, cornices, large mirrors, boards.
Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- housing and accessories in different RAL colours
- wiring: CLO
- class II
- emergency versions
Code
Item
A0660
Suspension with adjustment - 1m
A0661
Suspension with adjustment - 2 m
A0662
Suspension with adjustment - 3 m
A0663
Suspension with adjustment - 4 m
A0664
Suspension with adjustment - 5 m
A0665
Suspension with adjustment - 6 m
Suspension with regulator, galvanised steel cable 1.5 mm diameter, load 15 kg.
Attention: each product requires two suspensions with regulator.Code
Item
A02562
Caddy for exposed profiles of 24 mm
Caddy hook to create a point from which to suspend the system or the loads to false ceilings with visible profiles.
To be installed on exposed profiles (width 24 mm) of false ceilings.
We recommend reinforcing the false‑ceiling fixing at the point where the Caddy is to be installed.
Supplied complete with nut and washer.
The suspension must be purchased separately.Code
Item
A20452
Stainless steel hook for chain
Hook to suspended luminaires to a chain.
Code
Item
A20433
Linear connecting element
Element to connect in hot‑galvanised steel.
Code
Item
A0716
Coil galv. cable diam. 1.5mm - 100m
The pack contains 100 metres.A0717
Coil galv. cable diam. 1.5mm - 500m
The pack contains 500 metres.A0718
Coil galv. cable diam. 1.5mm - 1000m
The pack contains 1000 metres.Galvanised steel cable, diameter 1.5 mm, composed of 49 wires.
15 kg capacity (ratio 5:1).
These accessories must ALWAYS be used with one of the following codes: A20452 ‑ A0714 ‑ A0659.Code
Item
A0714
Clamp 2 holes susp.- 100 pcs
The pack contains 100 pieces.Clamp in nickel‑plated brass suitable for fixing and adjustment of galvanised steel wire (diameter 1,25 mm 1,5 mm ‑ 2 mm), complete with locking screws.
The 2 hole clamp allows to block and adjust the cable on a bearing element (part of the building) or on rounded eye bolt.
Code
Item
A0659
Adjustable clamp 2 holes - 10 pcs
The pack contains 10 pieces.Clamp suitable for fixing and adjustment of galvanised steel wire (diameter 1.5 mm), with quick adjustment through unlock buttons.
The clamp with 2 holes allow to fix and adjust the cable on the carrier structural element (belonging to the building) or with eye screw fixing.
This accessory can be used with one of the following codes: A0716 ‑ A0717 ‑ A0718.Code
Item
A20478
Anti-slip term. incli. 3F Linux
Safety bracket in white painted steel to secure lighting elements if installed vertically.
This accessory must ALWAYS be used with code A20448.Wall‑mounting bracket, in white painted steel.
Code
Item
A0679
5 pole rectangular rose (no cable) WH
Electric supply with white polycarbonate case, internal bracket in galvanised steel.
