3F Zeta L
Code 10892
L<3000 cd/m² 65°

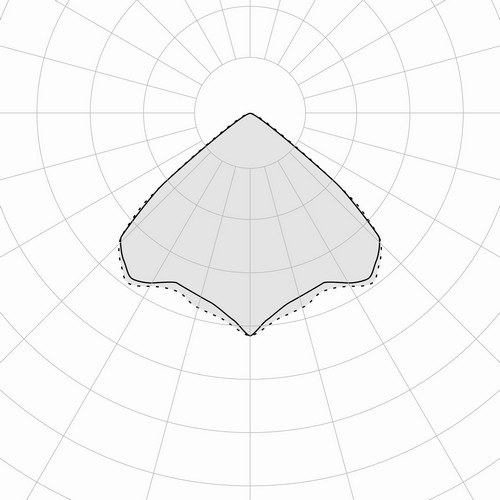

Lenses for wide distribution, in transparent methacrylate (PMMA) with external flat surface.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10894
3F Zeta L 15 LED L605
17
2749
4000
>80
605x62x65
40
10893
3F Zeta L 30 LED L1194
31
5498
4000
>80
1194x62x65
40
10892
3F Zeta L 40 LED L1489
38.5
6872
4000
>80
1489x62x65
40
10891
3F Zeta L 50 LED L1783
46
8247
4000
>80
1783x62x65
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10977
3F Zeta L 30 LED DALI L1194
31
5498
4000
>80
1194x62x65
40
10976
3F Zeta L 40 LED DALI L1489
38.5
6872
4000
>80
1489x62x65
40
10975
3F Zeta L 50 LED DALI L1783
46
8247
4000
>80
1783x62x65
40
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
10988
3F Zeta L 40 LED EP L1489
40
6872
4000
>80
1489x62x65
40
10987
3F Zeta L 50 LED EP L1783
47
8247
4000
>80
1783x62x65
40

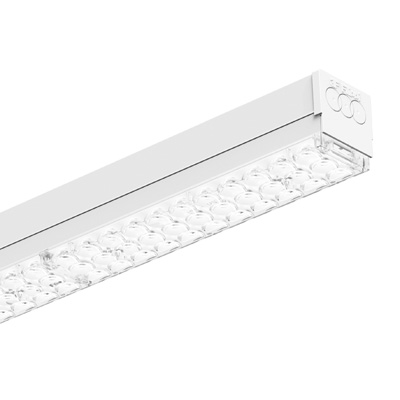

3F Zeta L UGR
Code 10864
L<3000 cd/m² 65°

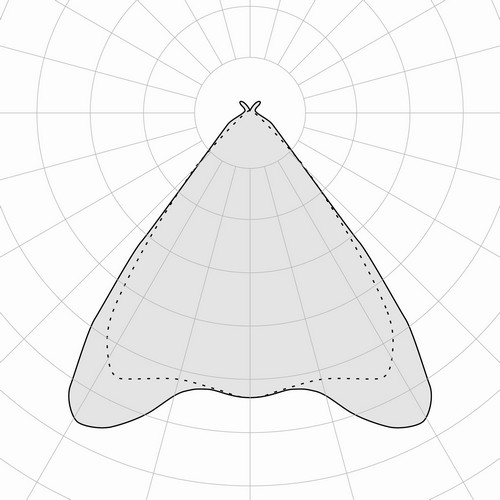

Average luminance <3000 cd/m² for radial angles >65°.
Transparent methacrylate (PMMA) controlled distribution lenses with flat external surface.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10864
3F Zeta L UGR 30 LED L1194
31
5481
4000
>80
1194x62x65
40
10840
3F Zeta L UGR 30/940 LED L1194
33
4494
4000
>90
1194x62x65
40
10863
3F Zeta L UGR 40 LED L1489
38.5
6851
4000
>80
1489x62x65
40
10839
3F Zeta L UGR 40/940 LED L1489
40
5618
4000
>90
1489x62x65
40
11026
3F Zeta L UGR 50 LED L1783
46
8221
4000
>80
1783x62x65
40
11027
3F Zeta L UGR 50/940 LED L1783
50
6742
4000
>90
1783x62x65
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10867
3F Zeta L UGR 30 LED DALI L1194
31
5481
4000
>80
1194x62x65
40
10842
3F Zeta L UGR 30/940 LED DALI L1194
33
4494
4000
>90
1194x62x65
40
10866
3F Zeta L UGR 40 LED DALI L1489
38.5
6851
4000
>80
1489x62x65
40
10841
3F Zeta L UGR 40/940 LED DALI L1489
40
5618
4000
>90
1489x62x65
40
11028
3F Zeta L UGR 50 LED DALI L1783
46
8221
4000
>80
1783x62x65
40
11029
3F Zeta L UGR 50/940 LED DALI L1783
50
6742
4000
>90
1783x62x65
40
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
10844
3F Zeta L UGR 30 LED EP L1194
32
5481
4000
>80
1194x62x65
40
10846
3F Zeta L UGR 30/940 LED EP L1194
34
4494
4000
>90
1194x62x65
40
10843
3F Zeta L UGR 40 LED EP L1489
40
6851
4000
>80
1489x62x65
40
10845
3F Zeta L UGR 40/940 LED EP L1489
41
5618
4000
>90
1489x62x65
40
11030
3F Zeta L UGR 50 LED EP L1783
47
8221
4000
>80
1783x62x65
40
11031
3F Zeta L UGR 50/940 LED EP L1783
51
6742
4000
>90
1783x62x65
40
3F Zeta L AS

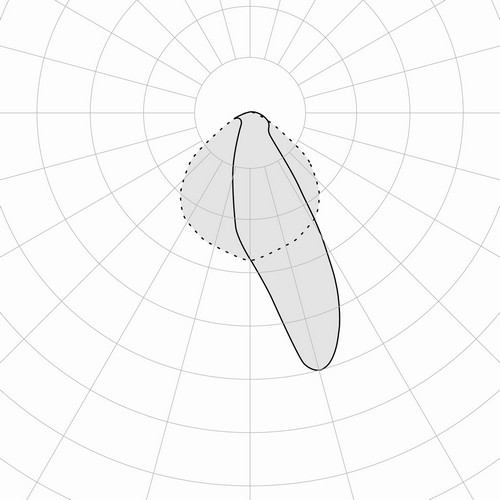

Transparent methacrylate (PMMA) asymmetric distribution lenses with a flat external surface.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10605
3F Zeta L AS 40 LED L1489
38.5
6894
4000
>80
1489x62x65
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10606
3F Zeta L AS 40 LED DALI L1489
38.5
6894
4000
>80
1489x62x65
40
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
10607
3F Zeta L AS 40 LED EP L1489
40
6894
4000
>80
1489x62x65
40
ILLUMINOTECHNICAL
Wide, direct and asymmetric controlled distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
L UGR versionAverage luminance <3000 cd/m² for radial angles >65°.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing in hot‑galvanised steel, painted in white polyester, obtained through rolling process.
Light unit in hot‑galvanised steel, painted in white polyester base with fixing springs and retractable safety hooks in stainless steel.
End caps in white polycarbonate.
Stainless steel mounting brackets with anti‑slip screws.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
The luminaires with EP permanent emergency wiring on board comply with EN 60598‑2‑22 standard, high risk areas excluded.
INSTALLATION
Ceiling, suspension or wall installation.
APPLICATIONS
Environments: architectural, commercial, transit areas, cornices, boards.
Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
L UGR versionEnvironments: exhibition areas, staterooms, with VDTs, halls, shops, great halls, offices.
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- housing and accessories in different RAL colours
- wiring: CLO
- HACCP versions
- IP54 version
- emergency versions
Code
Item
A0660
Suspension with adjustment - 1m
A0661
Suspension with adjustment - 2 m
A0662
Suspension with adjustment - 3 m
A0663
Suspension with adjustment - 4 m
A0664
Suspension with adjustment - 5 m
A0665
Suspension with adjustment - 6 m
Suspension with regulator, galvanised steel cable 1.5 mm diameter, load 15 kg.
Attention: each product requires two suspensions with regulator.Code
Item
A02562
Caddy for exposed profiles of 24 mm
Caddy hook to create a point from which to suspend the system or the loads to false ceilings with visible profiles.
To be installed on exposed profiles (width 24 mm) of false ceilings.
We recommend reinforcing the false‑ceiling fixing at the point where the Caddy is to be installed.
Supplied complete with nut and washer.
The suspension must be purchased separately.Code
Item
A20452
Stainless steel hook for chain
Hook to suspended luminaires to a chain.
Code
Item
A20433
Linear connecting element
Element to connect in hot‑galvanised steel.
Code
Item
A0716
Coil galv. cable diam. 1.5mm - 100m
The pack contains 100 metres.A0717
Coil galv. cable diam. 1.5mm - 500m
The pack contains 500 metres.A0718
Coil galv. cable diam. 1.5mm - 1000m
The pack contains 1000 metres.Galvanised steel cable, diameter 1.5 mm, composed of 49 wires.
15 kg capacity (ratio 5:1).
These accessories must ALWAYS be used with one of the following codes: A20452 ‑ A0714 ‑ A0659.Code
Item
A0714
Clamp 2 holes susp.- 100 pcs
The pack contains 100 pieces.Clamp in nickel‑plated brass suitable for fixing and adjustment of galvanised steel wire (diameter 1,25 mm 1,5 mm ‑ 2 mm), complete with locking screws.
The 2 hole clamp allows to block and adjust the cable on a bearing element (part of the building) or on rounded eye bolt.
Code
Item
A0659
Adjustable clamp 2 holes - 10 pcs
The pack contains 10 pieces.Clamp suitable for fixing and adjustment of galvanised steel wire (diameter 1.5 mm), with quick adjustment through unlock buttons.
The clamp with 2 holes allow to fix and adjust the cable on the carrier structural element (belonging to the building) or with eye screw fixing.
This accessory can be used with one of the following codes: A0716 ‑ A0717 ‑ A0718.Code
Item
A20478
Anti-slip term. incli. 3F Linux
Safety bracket in white painted steel to secure lighting elements if installed vertically.
This accessory must ALWAYS be used with code A20448.Wall‑mounting bracket, in white painted steel.
Code
Item
A0679
5 pole rectangular rose (no cable) WH
Electric supply with white polycarbonate case, internal bracket in galvanised steel.
