3F Six Track Wide
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47722
3F Six TK WH 40/840 WIDE 307x378
40
6936
4000
>80
307x378x52
40
47742
3F Six TK WH 40/840 WIDE 190x602
40
6936
4000
>80
602x190x52
40
47721
3F Six TK WH 50/840 WIDE 307x378
46
8247
4000
>80
307x378x52
40
47741
3F Six TK WH 50/840 WIDE 190x602
46
8247
4000
>80
602x190x52
40
47720
3F Six TK WH 60/840 WIDE 307x378
55.5
9855
4000
>80
307x378x52
40
47740
3F Six TK WH 60/840 WIDE 190x602
55.5
9855
4000
>80
602x190x52
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47725
3F Six TK WH 40/840 DALI WIDE 307x378
40
6936
4000
>80
307x378x52
40
47745
3F Six TK WH 40/840 DALI WIDE 190x602
40
6936
4000
>80
602x190x52
40
47724
3F Six TK WH 50/840 DALI WIDE 307x378
46
8247
4000
>80
307x378x52
40
47744
3F Six TK WH 50/840 DALI WIDE 190x602
46
8247
4000
>80
602x190x52
40
47723
3F Six TK WH 60/840 DALI WIDE 307x378
55.5
9855
4000
>80
307x378x52
40
47743
3F Six TK WH 60/840 DALI WIDE 190x602
55.5
9855
4000
>80
602x190x52
40
3F Six Track Medium
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47729
3F Six TK WH 40/840 MEDIUM 307x378
40
6843
4000
>80
307x378x52
40
47728
3F Six TK WH 50/840 MEDIUM 307x378
46
8136
4000
>80
307x378x52
40
47727
3F Six TK WH 60/840 MEDIUM 307x378
55.5
9723
4000
>80
307x378x52
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47732
3F Six TK WH 40/840 DALI MEDIUM 307x378
40
6843
4000
>80
307x378x52
40
47731
3F Six TK WH 50/840 DALI MEDIUM 307x378
46
8136
4000
>80
307x378x52
40
47730
3F Six TK WH 60/840 DALI MEDIUM 307x378
55.5
9723
4000
>80
307x378x52
40

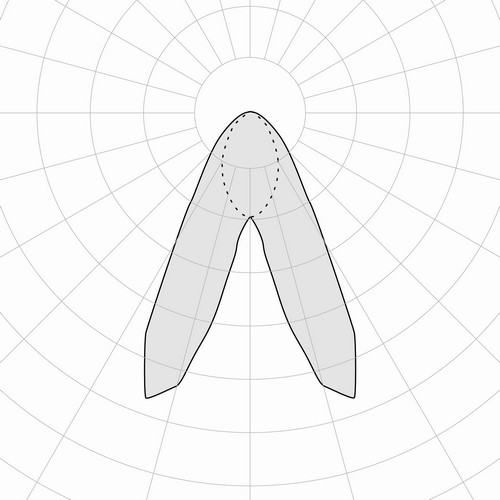

3F Six Track BAT
Double asymmetrical distribution.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47749
3F Six TK WH 40/840 BAT 190x602
40
6950
4000
>80
602x190x52
40
47748
3F Six TK WH 50/840 BAT 190x602
46
8264
4000
>80
602x190x52
40
47747
3F Six TK WH 60/840 BAT 190x602
55.5
9876
4000
>80
602x190x52
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47752
3F Six TK WH 40/840 DALI BAT 190x602
40
6950
4000
>80
602x190x52
40
47751
3F Six TK WH 50/840 DALI BAT 190x602
46
8264
4000
>80
602x190x52
40
47750
3F Six TK WH 60/840 DALI BAT 190x602
55.5
9876
4000
>80
602x190x52
40

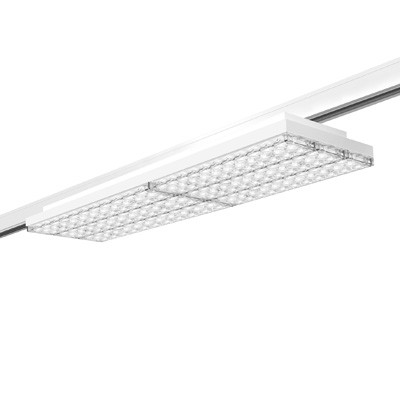

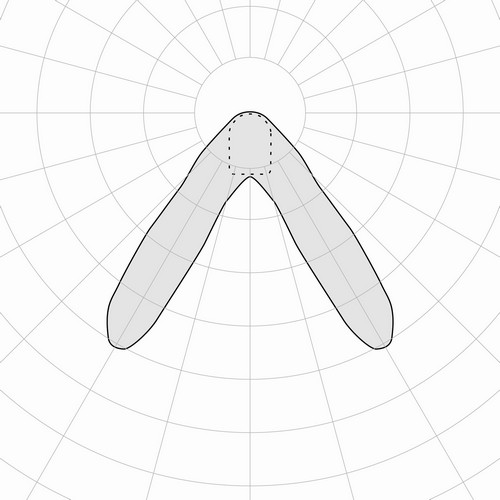

3F Six Track BAT WD
Wide double symmetric distribution.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47756
3F Six TK WH 40/840 BAT WD 190x602
40
6928
4000
>80
602x190x52
40
47755
3F Six TK WH 50/840 BAT WD 190x602
46
8238
4000
>80
602x190x52
40
47754
3F Six TK WH 60/840 BAT WD 190x602
55.5
9845
4000
>80
602x190x52
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47759
3F Six TK WH 40/840 DALI BAT WD 190x602
40
6928
4000
>80
602x190x52
40
47758
3F Six TK WH 50/840 DALI BAT WD 190x602
46
8238
4000
>80
602x190x52
40
47757
3F Six TK WH 60/840 DALI BAT WD 190x602
55.5
9845
4000
>80
602x190x52
40

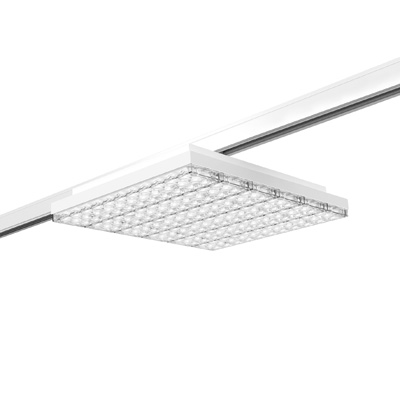

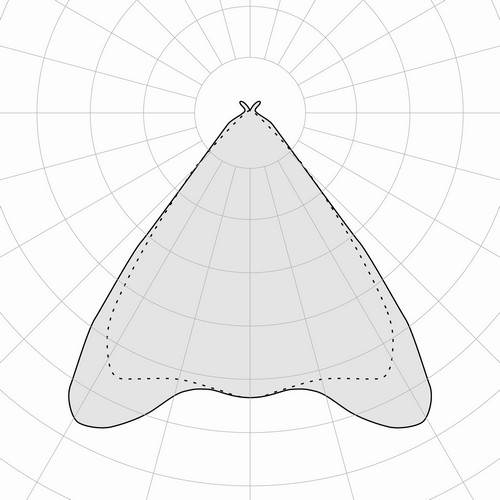

3F Six Track UGR
Code 47734
L<3000 cd/m² 65°
Controlled symmetric distribution.
Average luminance <3000 cd/m² for radial angles >65°.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47761
3F Six TK WH 40/840 UGR 190x602
40
6914
4000
>80
602x190x52
40
47734
3F Six TK WH 40/840 UGR 307x378
40
6914
4000
>80
307x378x52
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
47762
3F Six TK WH 40/840 DALI UGR 190x602
40
6914
4000
>80
602x190x52
40
47735
3F Six TK WH 40/840 DALI UGR 307x378
40
6914
4000
>80
307x378x52
40
ILLUMINOTECHNICAL
Direct distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing in galvannealed steel, painted in white epoxy‑polyester.
Height only 52 mm.
Methacrylate (PMMA) lenses with external flat surface.
The fixture can be rotated horizontally from 0° to 330°.
ELECTRICAL
In compliance with EN 60598‑1.
Truck adapter, 4/6‑way.
INSTALLATION
This product is suitable for installation on a 3‑phase electrified busbar "Binario 3F".
APPLICATIONS
Environments: industrial, commercial, exhibition areas, transit areas, lobbies or waiting rooms, shops.
UGR versionEnvironments that need luminance control.
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
ON REQUEST
- different light distributions
- different power levels, colour rendering indices and colour temperatures
- housing in different RAL colours
- wiring: CLO
- fixture rotation lock bracket
- emergency versions
- versions compliant with EN 60598‑2‑22 for central emergency power supply system (CPSS) or with on‑board battery
