3F Linda
Snug fit safety snap‑lock clips for diffuser mounting in stainless steel, screwdriver opening.
Fixing brackets in stainless steel.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58563
3F Linda LED 1x6W L660
7.5
1029
4000
>80
660x100x100
66
58561
3F Linda LED 1x12W L660
14
2033
4000
>80
660x100x100
66
58586
3F Linda LED 1x18W L1270
20
2967
4000
>80
1270x100x100
66
58608
3F Linda LED 1x22W L1570
25
3955
4000
>80
1570x100x100
66
58583
3F Linda LED 1x24W L1270
28
4065
4000
>80
1270x100x100
66
58585
3F Linda LED 1x24W/830 L1270
28
3862
3000
>80
1270x100x100
66
58584
3F Linda LED 1x24W/865 L1270
28
4065
6500
>80
1270x100x100
66
58572
3F Linda LED 2x12W L660
28
3955
4000
>80
660x160x100
66
58605
3F Linda LED 1x30W L1570
33.5
5180
4000
>80
1570x100x100
66
58607
3F Linda LED 1x30W/830 L1570
33.5
4921
3000
>80
1570x100x100
66
58606
3F Linda LED 1x30W/865 L1570
33.5
5180
6500
>80
1570x100x100
66
58597
3F Linda LED 2x18W L1270
40
6048
4000
>80
1270x160x100
66
58619
3F Linda LED 2x22W L1570
49
7557
4000
>80
1570x160x100
66
58594
3F Linda LED 2x24W L1270
54.5
7911
4000
>80
1270x160x100
66
58596
3F Linda LED 2x24W/830 L1270
54.5
7515
3000
>80
1270x160x100
66
58595
3F Linda LED 2x24W/865 L1270
54.5
7911
6500
>80
1270x160x100
66
58616
3F Linda LED 2x30W L1570
66
9715
4000
>80
1570x160x100
66
58618
3F Linda LED 2x30W/830 L1570
66
9230
3000
>80
1570x160x100
66
58617
3F Linda LED 2x30W/865 L1570
66
9715
6500
>80
1570x160x100
66
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58549
3F Linda LED 1x12W DALI L660
15
2033
4000
>80
660x100x100
66
58550
3F Linda LED 2x12W DALI L660
28
3955
4000
>80
660x160x100
66
58551
3F Linda LED 1x24W DALI L1270
28
4065
4000
>80
1270x100x100
66
58553
3F Linda LED 1x30W DALI L1570
33.5
5180
4000
>80
1570x100x100
66
58552
3F Linda LED 2x24W DALI L1270
54.5
7911
4000
>80
1270x160x100
66
58554
3F Linda LED 2x30W DALI L1570
66
9715
4000
>80
1570x160x100
66
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
58569
3F Linda LED 1x6W EP LA L660
8.5
1029
4000
>80
660x160x100
66
58567
3F Linda LED 1x12W EP LA L660
15
2033
4000
>80
660x160x100
66
58592
3F Linda LED 1x18W EP L1270
21
2967
4000
>80
1270x100x100
66
58614
3F Linda LED 1x22W EP L1570
26
3955
4000
>80
1570x100x100
66
58589
3F Linda LED 1x24W EP L1270
29
4065
4000
>80
1270x100x100
66
58591
3F Linda LED 1x24W/830 EP L1270
29
3862
3000
>80
1270x100x100
66
58590
3F Linda LED 1x24W/865 EP L1270
29
4065
6500
>80
1270x100x100
66
58611
3F Linda LED 1x30W EP L1570
34.5
5180
4000
>80
1570x100x100
66
58613
3F Linda LED 1x30W/830 EP L1570
34.5
4921
3000
>80
1570x100x100
66
58612
3F Linda LED 1x30W/865 EP L1570
34.5
5180
6500
>80
1570x100x100
66
58603
3F Linda LED 2x18W EP L1270
41
6048
4000
>80
1270x160x100
66
58626
3F Linda LED 2x22W EP L1570
50
7557
4000
>80
1570x160x100
66
58600
3F Linda LED 2x24W EP L1270
55.5
7911
4000
>80
1270x160x100
66
58602
3F Linda LED 2x24W/830 EP L1270
55.5
7515
3000
>80
1270x160x100
66
58601
3F Linda LED 2x24W/865 EP L1270
55.5
7911
6500
>80
1270x160x100
66
58623
3F Linda LED 2x30W EP L1570
67
9715
4000
>80
1570x160x100
66
58625
3F Linda LED 2x30W/830 EP L1570
67
9230
3000
>80
1570x160x100
66
58624
3F Linda LED 2x30W/865 EP L1570
67
9715
6500
>80
1570x160x100
66
ENP non‑permanent emergency wiring, 1hr duration with 24hrs recharge
Code
Item
lm
K
CRI
L x A x H
IP
58705
3F Linda LED 1x12W ENP LA L660
543
4000
>80
660x160x100
66
58713
3F Linda LED 1x24W ENP L1270
544
4000
>80
1270x100x100
66

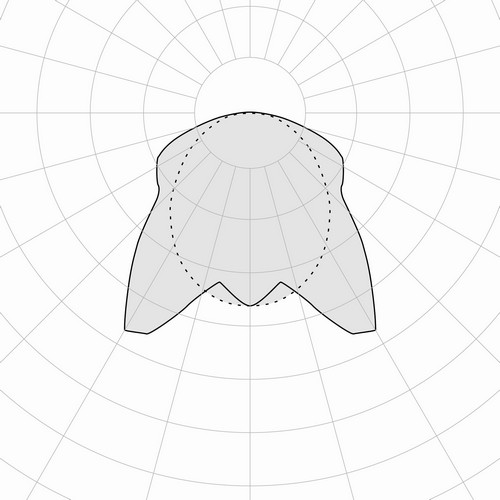

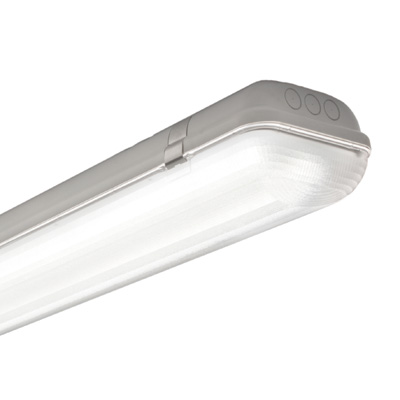

3F Linda HQ
LED sources with colour rendering index CRI >90.
Snug fit safety snap‑lock clips for diffuser mounting in stainless steel, screwdriver opening.
Fixing brackets in stainless steel.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58867
3F Linda LED 1x12W/940 L660
14
1575
4000
>90
660x100x100
66
58868
3F Linda LED 2x12W/940 L660
28
3065
4000
>90
660x160x100
66
58869
3F Linda LED 1x24W/940 L1270
28
3150
4000
>90
1270x100x100
66
58870
3F Linda LED 2x24W/940 L1270
54.5
6131
4000
>90
1270x160x100
66
58871
3F Linda LED 1x30W/940 L1570
33.5
4015
4000
>90
1570x100x100
66
58872
3F Linda LED 2x30W/940 L1570
66
7529
4000
>90
1570x160x100
66
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58873
3F Linda LED 1x12W/940 DALI L660
15
1575
4000
>90
660x100x100
66
58874
3F Linda LED 2x12W/940 DALI L660
28
3065
4000
>90
660x160x100
66
58875
3F Linda LED 1x24W/940 DALI L1270
28
3150
4000
>90
1270x100x100
66
58876
3F Linda LED 2x24W/940 DALI L1270
54.5
6131
4000
>90
1270x160x100
66
58877
3F Linda LED 1x30W/940 DALI L1570
33.5
4015
4000
>90
1570x100x100
66
58878
3F Linda LED 2x30W/940 DALI L1570
66
7529
4000
>90
1570x160x100
66

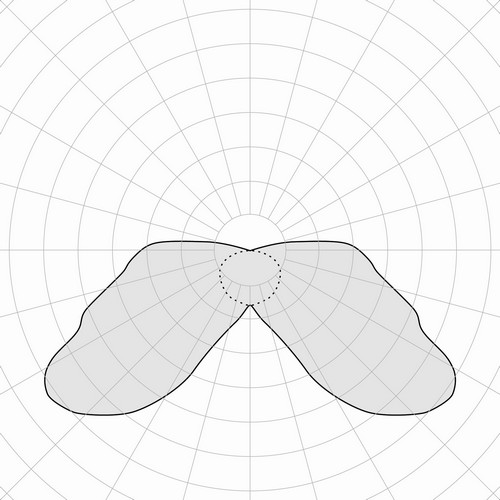

3F Linda Wide
Wide distribution.
Flux recuperator in specular aluminium, high efficiency.
Snug fit safety snap‑lock clips for diffuser mounting in stainless steel, screwdriver opening.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58659
3F Linda LED 2x24W AMPIO L1270
54.5
7893
4000
>80
1270x160x100
66
58661
3F Linda LED 2x30W AMPIO L1570
66
9694
4000
>80
1570x160x100
66
3F Linda Concentrated

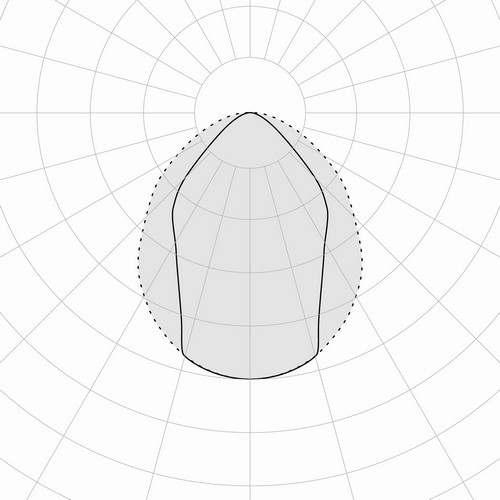

Concentrated elliptical distribution.
Flux recuperator in specular aluminium, high efficiency.
Snug fit safety snap‑lock clips for diffuser mounting in stainless steel, screwdriver opening.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58630
3F Linda LED 2x24W CONC L1270
54.5
7753
4000
>80
1270x160x100
66
58632
3F Linda LED 2x30W CONC L1570
66
9521
4000
>80
1570x160x100
66

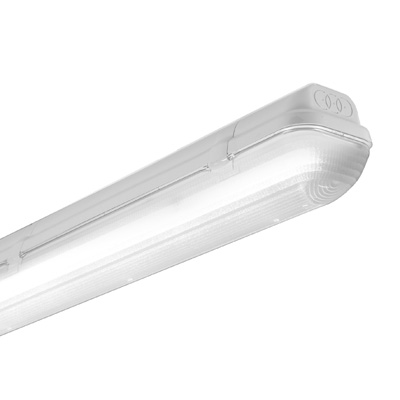

3F Linda Basic
Snug fit snap‑lock clips for diffuser mounting, in polycarbonate, tamper‑proof screwdriver opening.
In compliance with EN 60598‑1.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58762
3F Linda LED Basic 1x19W L1270
19
2938
4000
>80
1270x100x100
66
58764
3F Linda LED Basic 1x23W L1570
23
3548
4000
>80
1570x100x100
66
58766
3F Linda LED Basic ST 2x16W L1270
31
4711
4000
>80
1270x100x100
66
58763
3F Linda LED Basic 2x19W L1270
38
5590
4000
>80
1270x160x100
66
58767
3F Linda LED Basic ST 2x20W L1570
41
6281
4000
>80
1570x100x100
66
58765
3F Linda LED Basic 2x23W L1570
46
6905
4000
>80
1570x160x100
66

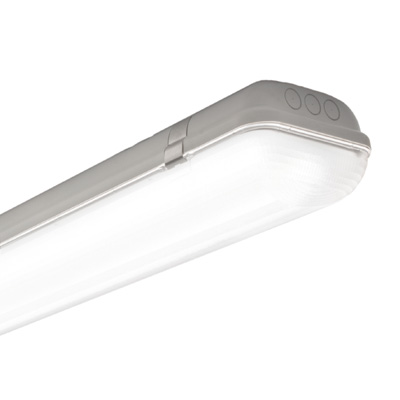

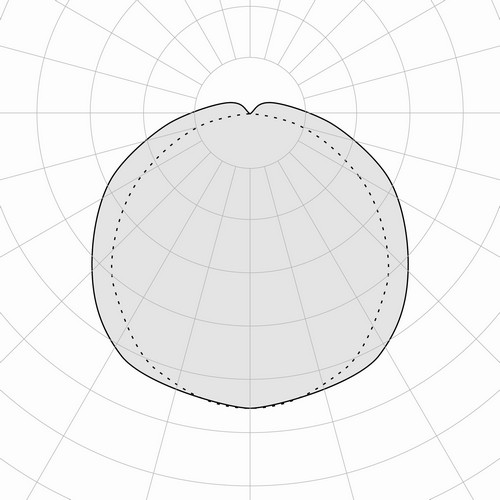

3F Linda Soft
Soft opal diffuser in self‑extinguishing V2 polycarbonate, photo‑engraved interior, UV stabilised, injection moulded.
Snug fit safety snap‑lock clips for diffuser mounting in stainless steel, screwdriver opening.
In compliance with EN 60598‑1.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58731
3F Linda LED Soft 1x12W L660
14
1866
4000
>80
660x100x100
66
58732
3F Linda LED Soft 2x12W L660
28
3578
4000
>80
660x160x100
66
58733
3F Linda LED Soft 1x24W L1270
28
3732
4000
>80
1270x100x100
66
58734
3F Linda LED Soft 1x30W L1570
33.5
4755
4000
>80
1570x100x100
66
58751
3F Linda LED Soft 2x22W L1570
49
6835
4000
>80
1570x160x100
66
58737
3F Linda LED Soft 2x24W L1270
54.5
7156
4000
>80
1270x160x100
66
58752
3F Linda LED Soft 2x30W L1570
66
8788
4000
>80
1570x160x100
66
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58735
3F Linda LED Soft 1x24W DALI L1270
28
3732
4000
>80
1270x100x100
66
58736
3F Linda LED Soft 1x30W DALI L1570
33.5
4755
4000
>80
1570x100x100
66
58753
3F Linda LED Soft 2x22W DALI L1570
49
6835
4000
>80
1570x160x100
66
58738
3F Linda LED Soft 2x24W DALI L1270
54.5
7156
4000
>80
1270x160x100
66
58754
3F Linda LED Soft 2x30W DALI L1570
66
8788
4000
>80
1570x160x100
66

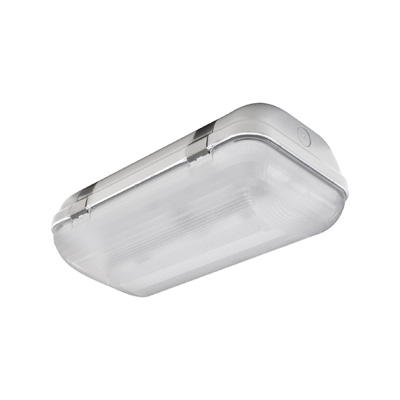

3F Linda Compact
In compliance with EN 60598‑1.
Snug fit safety snap‑lock clips for diffuser mounting in stainless steel, screwdriver opening.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
5066
3F Linda LED 1x6W L300
7.5
883
4000
>80
300x100x100
66
5067
3F Linda LED 1x6W LA L300
7.5
870
4000
>80
300x160x100
66
5068
3F Linda LED 2x6W L300
13
1646
4000
>80
300x160x100
66
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
5069
3F Linda LED 1x6W EP LA L300
8.5
870
4000
>80
300x160x100
66
5070
3F Linda LED 2x6W EP L300
14
1646
4000
>80
300x160x100
66
ENP non‑permanent emergency wiring, 1hr duration with 24hrs recharge
Code
Item
lm
K
CRI
L x A x H
IP
5071
3F Linda LED 1x6W ENP LA L300
557
4000
>80
300x160x100
66
ILLUMINOTECHNICAL
Controlled symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Self‑extinguishing V2 polycarbonate housing, injection moulded, RAL 7035 grey.
Ecologic anti‑aging injected sealing gasket.
Gear‑holder reflector in hot‑dip galvanised steel, painted with white polyester base.
Diffuser in self‑extinguishing V2 polycarbonate, photo‑engraved interior, UV stabilised, injection moulded with smooth outer surface.
Stainless steel fixing brackets, L=300 mm versions excluded.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
The luminaires with EP permanent emergency wiring on board comply with EN 60598‑2‑22 standard, high risk areas excluded.
APPLICATIONS
Dry, dusty indoor environments, subject to occasional water splashes.
Virtually shatterproof polycarbonate compatibly with the fumes / atmospheres that compromise the elasticity of plastic materials.
Not suitable in environments where chlorine fumes, ligroin, hydrocarbon mixtures, mineral oil vapours or fumes of lubricating emulsions to cool down machine tools are present.
Not suitable for installation on surfaces subject to important vibrations, exposed to weather conditions, on ropes or poles.

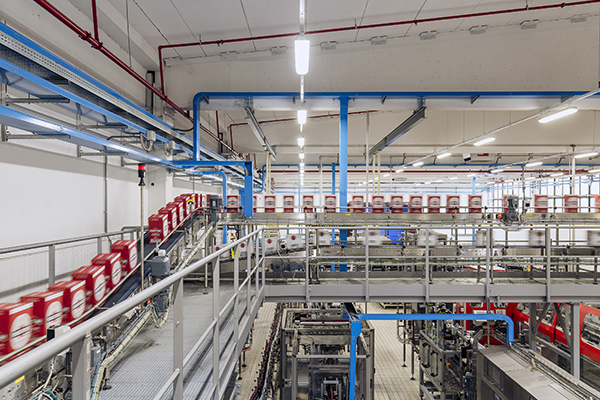

Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
Suitable for illumination of public car parks and parking grounds referred to DIN 67528:2018‑04.
For specific applications please contact our technical offices.
WARNING
Fixture not suitable for cold stores with an ambient temperature <0°C and/or relative humidity >85%.
ON REQUEST
- different colour rendering indices and colour temperatures
- wiring: CLO, class II
- linear LED modules, with special protection against aggressive chemically‑volatile substances, for standard LED technology
- emergency versions
Code
Item
A0660
Suspension with adjustment - 1m
A0661
Suspension with adjustment - 2 m
A0662
Suspension with adjustment - 3 m
A0663
Suspension with adjustment - 4 m
A0664
Suspension with adjustment - 5 m
A0665
Suspension with adjustment - 6 m
Suspension with regulator, galvanised steel cable 1.5 mm diameter, load 15 kg.
Attention: each product requires two suspensions with regulator.
Accessory not compatible with 3F Linda LED Compact versions.Code
Item
A0160
Inox clips 3F Linda L660 -4pcs
The pack contains 4 pieces.A0161
Inox clips 3F Linda L1270 -8pcs
The pack contains 8 pieces.A0162
Inox clips 3F Linda L1570 -10pcs
The pack contains 10 pieces.Snug fit snap‑lock clips for diffuser mounting, in stainless steel, safety opening.
Code
Item
A0449
15 GZI w/brack.+ hooks Linda L300
A0450
15 RIT w/bra.+hooks Linda L660-1270-1570
Pair of brackets and hooks in stainless steel, with nuts and bolts for fixing to 3F Linda, for ceiling or wall‑mounting, single and twin‑lamp luminaires.
Minimum tilt angle = 45°.
Code
Item
A0451
15 MBI w/brack.+ hooks Linda L300
A0452
15 FBR w/bra.+hooks Linda L660-1270-1570
Pair of brackets and hooks in stainless steel, with nuts and bolts for fixing to 3F Linda, for wall‑mounting, single and twin‑lamp luminaires.
Code
Item
A0462
13 GSI (pair of susp. hooks Linda L300)
A0463
13 TRM pair of susp.hooks Linda
Pair of stainless steel hooks for suspended installation, with cable clip and nuts and bolts for installation to 3F Linda.
Wire‑guard for applications in dry environments, against shocks coming from any directions, galvanised steel rod Ø 5 mm.
Only for luminaires fixed without hooks.Code
Item
A0447
3F Linda through-line L1570
5‑pole cascade connection line, stiff cable H07 V2‑U, HT 90°C, 1.5 mm², terminal blocks with connection capacity 2x2.5 mm².
Accessory not compatible with ST versions of 3F Linda LED Basic.Anti‑condensation diffuser cable gland.
Recommended for installations in environments with temperature sudden changes or subject to condensation.Code
Item
A0521
Reducing sealing ring diam.8mm
Reducing sealing ring, dedicated to the use of cables with an external diameter of up to 8 mm.
Code
Item
A0464
26 CSG (pictogram P1 Linda L300)
A0465
26 MTH (pictogram P1 Linda L660)
Pictograms for warning signs to be applied on emergency luminaire's diffusers 160 mm wide.
Pictogram, 135 mm high, 240 mm long for L300 luminaires, 605 mm long for L660 luminaires.
Pictograms complying with European standards concerning health and safety signals on the workplace.
Code
Item
A0466
26 DVI (pictogram P2 Linda L300)
A0467
26 MVL (pictogram P2 Linda L660)
Pictograms for warning signs to be applied on emergency luminaire's diffusers 160 mm wide.
Pictogram, 135 mm high, 240 mm long for L300 luminaires, 605 mm long for L660 luminaires.
Pictograms complying with European standards concerning health and safety signals on the workplace.
Code
Item
A0468
26 GZM (pictogram P3 Linda L300)
A0469
26 PXN (pictogram P3 Linda L660)
Pictograms for warning signs to be applied on emergency luminaire's diffusers 160 mm wide.
Pictogram, 135 mm high, 240 mm long for L300 luminaires, 605 mm long for L660 luminaires.
Pictograms complying with European standards concerning health and safety signals on the workplace.
Code
Item
A0434
Safety screw locking Linda - 20 pcs
The pack contains 20 pieces.A0435
Safety screw locking Linda - 100 pcs
The pack contains 100 pieces.Safety screw for 3F Linda locking bracket
