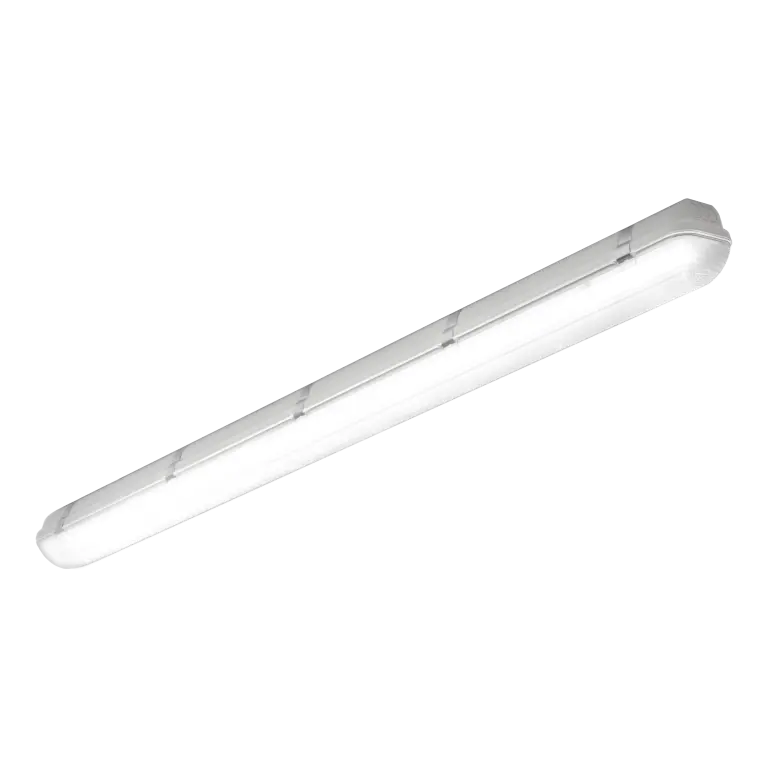

3F Linda Sensor
Integrated presence sensor with ON/OFF function.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58638
3F Linda LED 1x30W Sensor L1570
35.5
5180
4000
>80
1570x100x100
66
58642
3F Linda LED 2x30W Sensor L1570
67
9715
4000
>80
1570x160x100
66

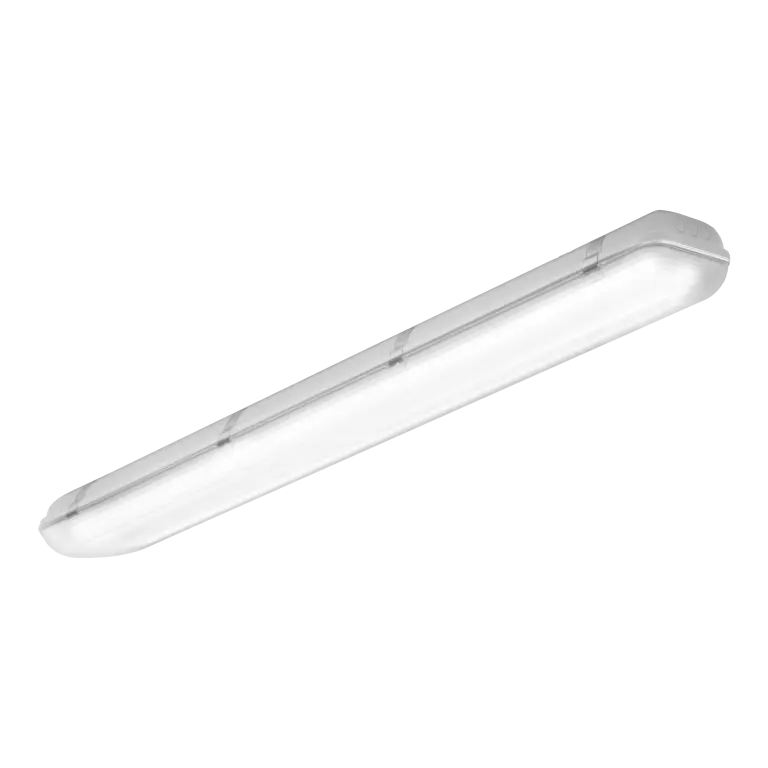

3F Linda Sensor Corridor Function
Integrated presence sensor with Corridor Function mode, even with the environment free of people, the luminous flux is maintained at 10%.
CF (Corridor Function) electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58645
3F Linda LED 1x30W Sensor CF L1570
35.5
5180
4000
>80
1570x100x100
66
58649
3F Linda LED 2x30W Sensor CF L1570
67
9715
4000
>80
1570x160x100
66
3F Linda Sensor Bluetooth
Integrated Bluetooth presence sensor that allows to adjust and create a wireless network between DALI‑BLE fixtures.
Commissioning of the control system by means of a free APP; specialist technician intervention can be offered on request.
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
58786
3F Linda LED 1x24W Sensor DALI-BLE L1270
29
4065
4000
>80
1270x100x100
66
58787
3F Linda LED 1x30W Sensor DALI-BLE L1570
35.5
5180
4000
>80
1570x100x100
66
58788
3F Linda LED 2x24W Sensor DALI-BLE L1270
55.5
7911
4000
>80
1270x160x100
66
58789
3F Linda LED 2x30W Sensor DALI-BLE L1570
67
9715
4000
>80
1570x160x100
66
ILLUMINOTECHNICAL

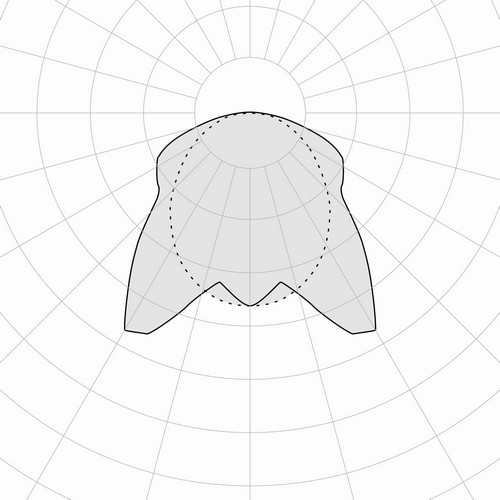

Controlled symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Self‑extinguishing V2 polycarbonate housing, injection moulded, RAL 7035 grey.
Ecologic anti‑aging injected sealing gasket.
Gear‑holder reflector in hot‑dip galvanised steel, painted with white polyester base.
Diffuser in self‑extinguishing V2 polycarbonate, photo‑engraved interior, UV stabilised, injection moulded with smooth outer surface.
Snug fit safety snap‑lock clips for diffuser mounting in stainless steel, screwdriver opening.
Fixing brackets in stainless steel.
ELECTRICAL
In compliance with EN 60598‑1.
Integrated presence sensor.
APPLICATIONS
Dry, dusty indoor environments, subject to occasional water splashes.
Environments: transit areas, parking lots.
Virtually shatterproof polycarbonate compatibly with the fumes / atmospheres that compromise the elasticity of plastic materials.
Not suitable in environments where chlorine fumes, ligroin, hydrocarbon mixtures, mineral oil vapours or fumes of lubricating emulsions to cool down machine tools are present.
Not suitable for installation on surfaces subject to important vibrations, exposed to weather conditions, on ropes or poles.
Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
Suitable for illumination of public car parks and parking grounds referred to DIN 67528:2018‑04.
For specific applications please contact our technical offices.
LIGHT MANAGEMENT
The products use 3F Sensor technology.
WARNING
Fixture not suitable for cold stores with an ambient temperature <0°C and/or relative humidity >85%.
ON REQUEST
- different colour rendering indices and colour temperatures
- linear LED modules, with special protection against aggressive chemically‑volatile substances, for standard LED technology
- emergency versions
Code
Item
A0660
Suspension with adjustment - 1m
A0661
Suspension with adjustment - 2 m
A0662
Suspension with adjustment - 3 m
A0663
Suspension with adjustment - 4 m
A0664
Suspension with adjustment - 5 m
A0665
Suspension with adjustment - 6 m
Suspension with regulator, galvanised steel cable 1.5 mm diameter, load 15 kg.
Attention: each product requires two suspensions with regulator.Code
Item
A0449
15 GZI w/brack.+ hooks Linda L300
A0450
15 RIT w/bra.+hooks Linda L660-1270-1570
Pair of brackets and hooks in stainless steel, with nuts and bolts for fixing to 3F Linda, for ceiling or wall‑mounting, single and twin‑lamp luminaires.
Minimum tilt angle = 45°.
Code
Item
A0451
15 MBI w/brack.+ hooks Linda L300
A0452
15 FBR w/bra.+hooks Linda L660-1270-1570
Pair of brackets and hooks in stainless steel, with nuts and bolts for fixing to 3F Linda, for wall‑mounting, single and twin‑lamp luminaires.
Code
Item
A0462
13 GSI (pair of susp. hooks Linda L300)
A0463
13 TRM pair of susp.hooks Linda
Pair of stainless steel hooks for suspended installation, with cable clip and nuts and bolts for installation to 3F Linda.
Wire‑guard for applications in dry environments, against shocks coming from any directions, galvanised steel rod Ø 5 mm.
Only for luminaires fixed without hooks.Anti‑condensation diffuser cable gland.
Recommended for installations in environments with temperature sudden changes or subject to condensation.Code
Item
A0521
Reducing sealing ring diam.8mm
Reducing sealing ring, dedicated to the use of cables with an external diameter of up to 8 mm.
Code
Item
A0464
26 CSG (pictogram P1 Linda L300)
A0465
26 MTH (pictogram P1 Linda L660)
Pictograms for warning signs to be applied on emergency luminaire's diffusers 160 mm wide.
Pictogram, 135 mm high, 240 mm long for L300 luminaires, 605 mm long for L660 luminaires.
Pictograms complying with European standards concerning health and safety signals on the workplace.
Code
Item
A0466
26 DVI (pictogram P2 Linda L300)
A0467
26 MVL (pictogram P2 Linda L660)
Pictograms for warning signs to be applied on emergency luminaire's diffusers 160 mm wide.
Pictogram, 135 mm high, 240 mm long for L300 luminaires, 605 mm long for L660 luminaires.
Pictograms complying with European standards concerning health and safety signals on the workplace.
Code
Item
A0468
26 GZM (pictogram P3 Linda L300)
A0469
26 PXN (pictogram P3 Linda L660)
Pictograms for warning signs to be applied on emergency luminaire's diffusers 160 mm wide.
Pictogram, 135 mm high, 240 mm long for L300 luminaires, 605 mm long for L660 luminaires.
Pictograms complying with European standards concerning health and safety signals on the workplace.
Code
Item
A0434
Safety screw locking Linda - 20 pcs
The pack contains 20 pieces.A0435
Safety screw locking Linda - 100 pcs
The pack contains 100 pieces.Safety screw for 3F Linda locking bracket
