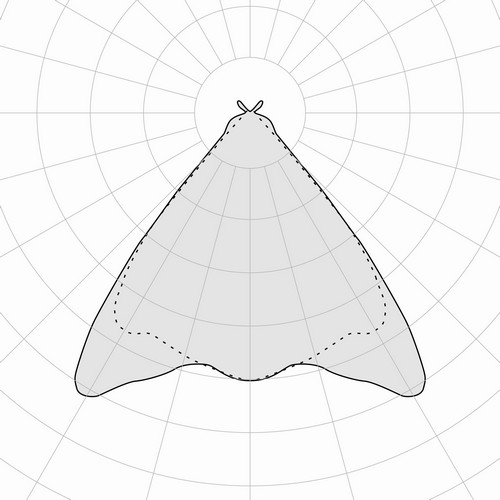

Direct symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Lifetime (L85/B10): 50000 h. (tq+40°C)
Photobiological safety RG0.Linear LED modules.

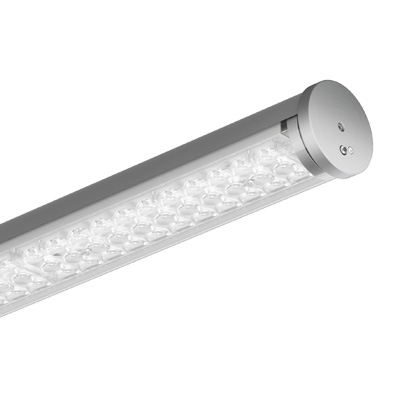

Colour initial tolerance (MacAdam): SDCM 3.High thickness tubular body in high transparency polycarbonate surface treatment, which guarantees resistance to aggressive chemical agents.
Die‑cast aluminium end caps, painted in grey polyester.
Sealing gasket.
Gear‑holder reflector in hot‑dip galvanised steel, painted with white polyester base.
Fixing brackets and screws in AISI 316 stainless steel.In compliance with EN 60598‑1.
Quick connection via M20x1.5 cable gland in fibreglass reinforced polyamide with 2m H07RN‑F 3/5G1.5mm² cable exiting from the head and truncated end.Ceiling, suspension or wall installation.Environments with ATEX explosive atmosphere (Conformity 2014/34/UE, EN IEC 60079‑0, EN 60079‑15, EN 60079‑31): Group II, Category 3D (Ex Tc IIIC T85°C Dc) and Category 3G (Ex nR IIC T6 Gc).
Severe Industrial Environments, food and agri‑food industries, scientific and food processing laboratories, environments with high humidity, swimming pools, railway, aeronautical and port applications.
Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
Cells with temperature from ‑20°C to +40°C with a humidity degree up to 95%.
Body resistant to the following substances: Ethyl alcohol (24 hours at 20°C), aqueous detergents, hydrochloric acid (produces a slight halo), DOT4 brake oil, sulfuric acid (produces a slight halo), ammonia.
When using this data, remember that it is the result of laboratory tests, and therefore valid only under those test conditions: the data is to be considered approximate and, in the absence of practical experience, it is advisable to carry out tests under actual operating conditions.
Temperature and concentration of the chemical agent can affect materials and influence LED technology.
For applications in environments in which disturbances on the power network may be present and/or involve use at low temperatures, surge protection devices should be fitted on the power supply and any causes of undervoltages eliminated.
For specific applications please contact our technical offices.The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.

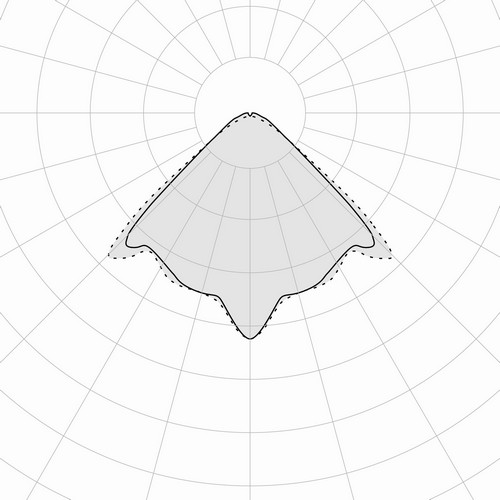

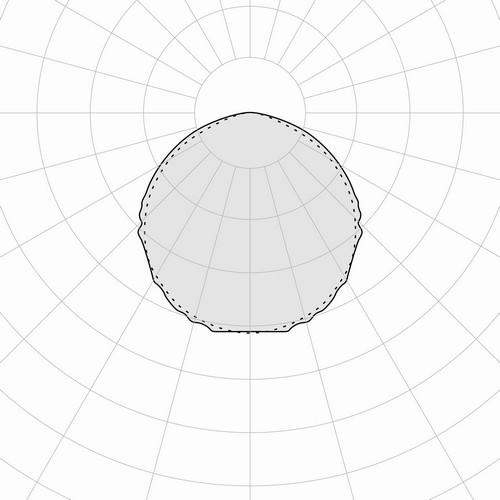

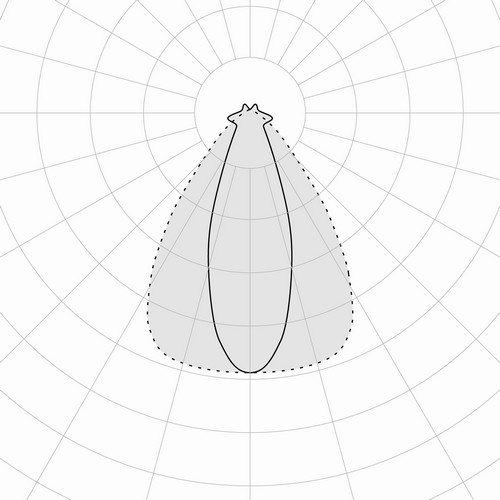

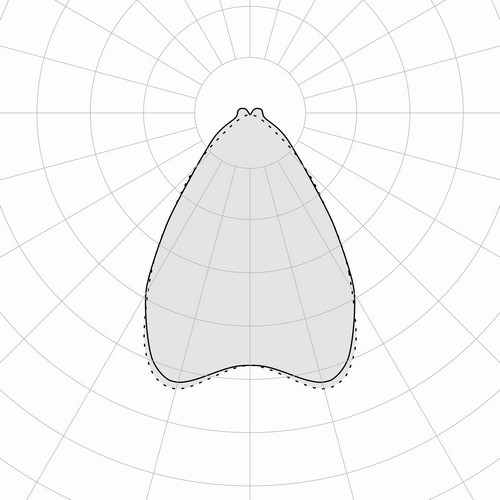

• different light distributions
• different colour rendering indices and colour temperatures
