Kit LED Retrofit 3F Linda 1X
ON/OFF electronic wiring 230V‑50/60Hz
Kit LED 3F Linda - L660 - 1x6W (2pcs)
7.5
1029
4000
>80
660x100x100
Kit LED 3F Linda - L660 - 1x12W (2pcs)
14
2033
4000
>80
660x100x100
Kit LED 3F Linda - L1270 - 1x18W (2pcs)
20
2967
4000
>80
1270x100x100
Kit LED 3F Linda - L1270 - 1x24W (2pcs)
28
4065
4000
>80
1270x100x100
Kit LED 3F Linda - L1570 - 1x22W (2pcs)
25
3955
4000
>80
1570x100x100
Kit LED 3F Linda - L1570 - 1x30W (2pcs)
33.5
5180
4000
>80
1570x100x100

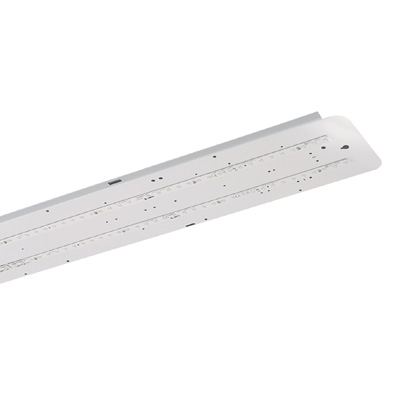

Kit LED Retrofit 3F Linda 2X
ON/OFF electronic wiring 230V‑50/60Hz
Kit LED 3F Linda - L660 - 2x6W (2pcs)
14
2002
4000
>80
660x160x100
Kit LED 3F Linda - L660 - 2x12W (2pcs)
28
3955
4000
>80
660x160x100
Kit LED 3F Linda - L1270 - 2x18W (2pcs)
40
6048
4000
>80
1270x160x100
Kit LED 3F Linda - L1270 - 2x24W (2pcs)
54.5
7911
4000
>80
1270x160x100
Kit LED 3F Linda - L1570 - 2x22W (2pcs)
49
7557
4000
>80
1570x160x100
Kit LED 3F Linda - L1570 - 2x30W (2pcs)
66
9715
4000
>80
1570x160x100

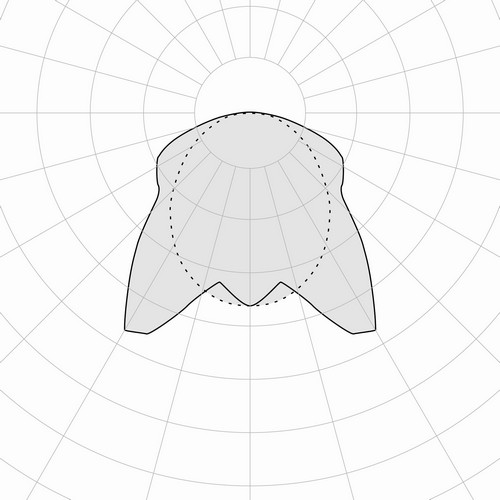

ILLUMINOTECHNICAL
Controlled symmetric distribution.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Gear‑holder reflector in hot‑dip galvanised steel, painted with white polyester base.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
INSTALLATION
Retrofit.
Correct installation of the retrofit LED kit, compliant with EN 60598‑1 and CE marked, inside the 3F Filippi ‑ 3F Linda Fluorescent luminaires must be only performed by qualified personnel to ensure compliance with the national installation standards.
ACCESSORIES
Diffuser in self‑extinguishing V2 polycarbonate, photo‑engraved interior, UV stabilised, injection moulded with smooth outer surface.
WARNING
Fixture not suitable for cold stores with an ambient temperature <0°C and/or relative humidity >85%.
If the luminaire being retrofitted has a transparent prismatic screen, it must be replaced with the new photo‑etched screen, available as an accessory.
Attention: to maintain the degree of protection of the device and for the purposes of validity of the guarantee of the new retrofit kits, it is imperative to replace the old cable guides (on the body of the device) with the new ones supplied.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- emergency versions
Code
Item

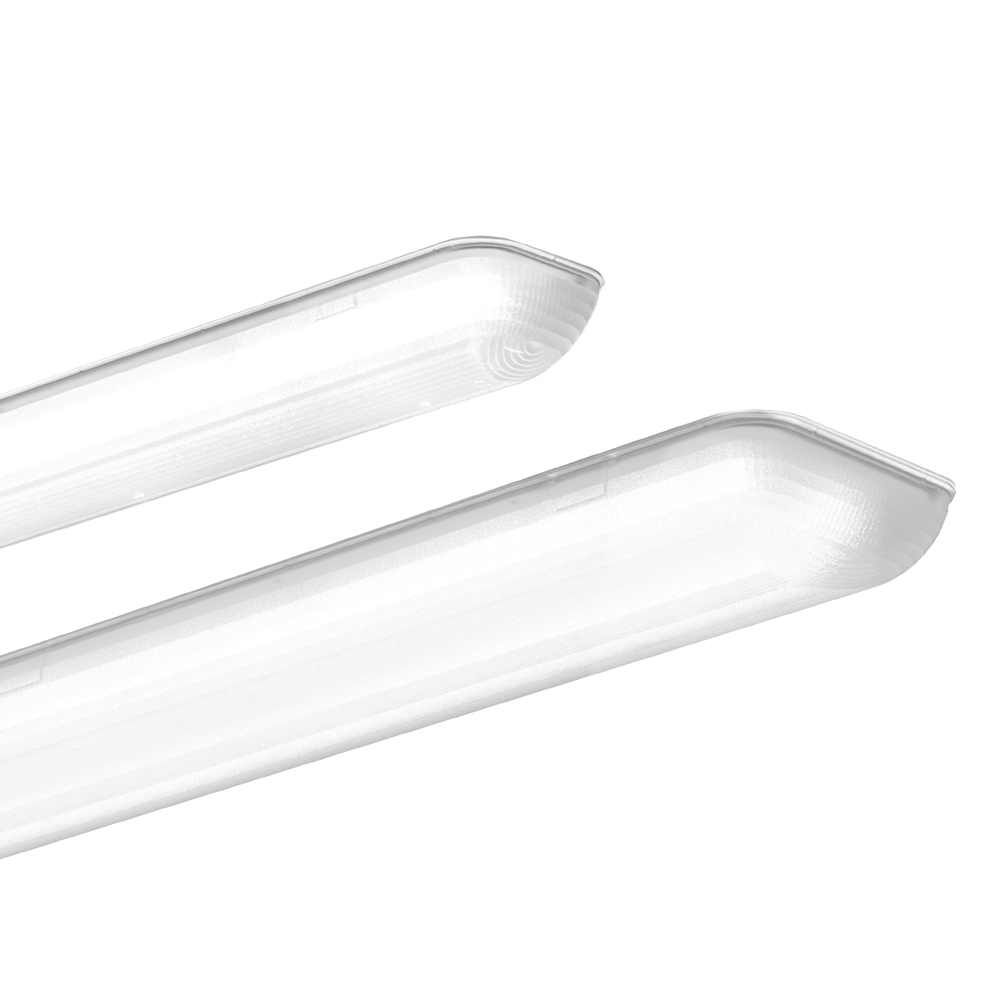

Photo-etched diffuser Linda 1x L660 (3pcs)
Photo-etched diffuser Linda 1x L1270 (3pcs)
Photo-etched diffuser Linda 1x L1570 (3pcs)
Photo-etched diffuser Linda 2x L660 (3pcs)
Photo-etched diffuser Linda 2x L1270 (3pcs)
Photo-etched diffuser Linda 2x L1570 (3pcs)
Diffuser in self‑extinguishing V2 polycarbonate, photo‑engraved interior, UV stabilised, injection moulded with smooth outer surface.
