3F Dìagon Instalación en apoyo

3F Dìagon

3F Dìagon Instalación en apoyo

Carcasa de acero galvanizado en caliente, con acabado en pintura de poliéster blanca. Pantalla de policarbonato (PC) blanco, compuesta por celdas dispuestas en diagonal. Instalación en apoyo.
Accesorios

3F Dìagon

APPARECCHIO ADATTO AGLI UFFICI 650°C CE D ENEC EP ICE IK06 1j SAFE FLICKER
3F Dìagon

Cableado ON-OFF 220-240V 50-60Hz

Código Artículo W lm K CRI L x A x H IP
23002 3F DIAGON 25W/830 596x596 28 4029 3000 >80 596x596x30 IP43 ↓ i
23386 3F DIAGON 25W/830 621x621 28 4029 3000 >80 621x621x30 IP43 ↓ i
23098 3F DIAGON 25W/930 596x596 28 3103 3000 >90 596x596x30 IP43 ↓ i
23482 3F DIAGON 25W/930 621x621 28 3103 3000 >90 621x621x30 IP43 ↓ i
23025 3F DIAGON 15W/840 596x596 17 2694 4000 >80 596x596x30 IP43 ↓ i
23409 3F DIAGON 15W/840 621x621 17 2694 4000 >80 621x621x30 IP43 ↓ i
23024 3F DIAGON 19W/840 596x596 21 3354 4000 >80 596x596x30 IP43 ↓ i
23408 3F DIAGON 19W/840 621x621 21 3354 4000 >80 621x621x30 IP43 ↓ i
23026 3F DIAGON 25W/840 596x596 28 4250 4000 >80 596x596x30 IP43 ↓ i
23410 3F DIAGON 25W/840 621x621 28 4250 4000 >80 621x621x30 IP43 ↓ i
23027 3F DIAGON 39W/840 596x596 40 5796 4000 >80 596x596x30 IP43 ↓ i
23411 3F DIAGON 39W/840 621x621 40 5796 4000 >80 621x621x30 IP43 ↓ i
23122 3F DIAGON 25W/940 596x596 28 3273 4000 >90 596x596x30 IP43 ↓ i
23506 3F DIAGON 25W/940 621x621 28 3273 4000 >90 621x621x30 IP43 ↓ i
23123 3F Diagon 39W/940 596x596 40 4564 4000 >90 596x596x30 IP43 ↓ i
23507 3F DIAGON 39W/940 621x621 40 4564 4000 >90 621x621x30 IP43 ↓ i

Cableado DALI 220-240V 50-60Hz

Código Artículo W lm K CRI L x A x H IP
23006 3F DIAGON 25W/830 DALI 596x596 28 4029 3000 >80 596x596x30 IP43 ↓ i
23390 3F DIAGON 25W/830 DALI 621x621 28 4029 3000 >80 621x621x30 IP43 ↓ i
23102 3F DIAGON 25W/930 DALI 596x596 28 3103 3000 >90 596x596x30 IP43 ↓ i
23486 3F DIAGON 25W/930 DALI 621x621 28 3103 3000 >90 621x621x30 IP43 ↓ i
23029 3F DIAGON 15W/840 DALI 596x596 17 2694 4000 >80 596x596x30 IP43 ↓ i
23413 3F DIAGON 15W/840 DALI 621x621 17 2694 4000 >80 621x621x30 IP43 ↓ i
23028 3F DIAGON 19W/840 DALI 596x596 21 3354 4000 >80 596x596x30 IP43 ↓ i
23412 3F DIAGON 19W/840 DALI 621x621 21 3354 4000 >80 621x621x30 IP43 ↓ i
23030 3F DIAGON 25W/840 DALI 596x596 28 4250 4000 >80 596x596x30 IP43 ↓ i
23414 3F DIAGON 25W/840 DALI 621x621 28 4250 4000 >80 621x621x30 IP43 ↓ i
23031 3F DIAGON 39W/840 DALI 596x596 40 5796 4000 >80 596x596x30 IP43 ↓ i
23415 3F DIAGON 39W/840 DALI 621x621 40 5796 4000 >80 621x621x30 IP43 ↓ i
23126 3F DIAGON 25W/940 DALI 596x596 28 3273 4000 >90 596x596x30 IP43 ↓ i
23510 3F DIAGON 25W/940 DALI 621x621 28 3273 4000 >90 621x621x30 IP43 ↓ i
23127 3F DIAGON 39W/940 DALI 596x596 40 4564 4000 >90 596x596x30 IP43 ↓ i
23511 3F DIAGON 39W/940 DALI 621x621 40 4564 4000 >90 621x621x30 IP43 ↓ i

Cableado EP 220-240V 50-60Hz

Código Artículo W lm K CRI L x A x H IP
23010 3F DIAGON 25W/830 EP 596x596 29 4029 3000 >80 596x596x30 IP43 ↓ i
23394 3F DIAGON 25W/830 EP 621x621 29 4029 3000 >80 621x621x30 IP43 ↓ i
23106 3F DIAGON 25W/930 EP 596x596 29 3103 3000 >90 596x596x30 IP43 ↓ i
23490 3F DIAGON 25W/930 EP 621x621 29 3103 3000 >90 621x621x30 IP43 ↓ i
23033 3F DIAGON 15W/840 EP 596x596 18 2694 4000 >80 596x596x30 IP43 ↓ i
23417 3F DIAGON 15W/840 EP 621x621 18 2694 4000 >80 621x621x30 IP43 ↓ i
23032 3F DIAGON 19W/840 EP 596x596 22 3354 4000 >80 596x596x30 IP43 ↓ i
23416 3F DIAGON 19W/840 EP 621x621 22 3354 4000 >80 621x621x30 IP43 ↓ i
23034 3F DIAGON 25W/840 EP 596x596 29 4250 4000 >80 596x596x30 IP43 ↓ i
23418 3F DIAGON 25W/840 EP 621x621 29 4250 4000 >80 621x621x30 IP43 ↓ i
23035 3F DIAGON 39W/840 EP 596x596 41 5796 4000 >80 596x596x30 IP43 ↓ i
23419 3F DIAGON 39W/840 EP 621x621 41 5796 4000 >80 621x621x30 IP43 ↓ i
23130 3F DIAGON 25W/940 EP 596x596 29 3273 4000 >90 596x596x30 IP43 ↓ i
23514 3F DIAGON 25W/940 EP 621x621 29 3273 4000 >90 621x621x30 IP43 ↓ i
23131 3F DIAGON 39W/940 EP 596x596 41 4564 4000 >90 596x596x30 IP43 ↓ i
23515 3F DIAGON 39W/940 EP 621x621 41 4564 4000 >90 621x621x30 IP43 ↓ i

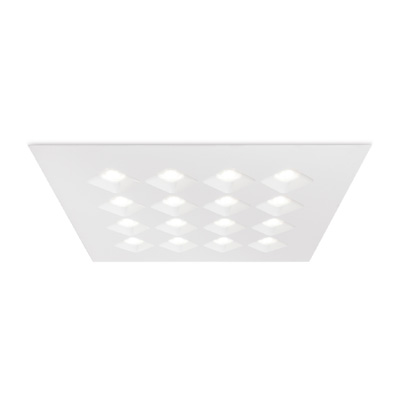

3F Dìagon Soft UGR

APPARECCHIO ADATTO AGLI UFFICI 650°C CE D ENEC EP ICE IK06 1j SAFE FLICKER
3F Dìagon Soft UGR

Cableado ON-OFF 220-240V 50-60Hz

Código Artículo W lm K CRI L x A x H IP
23826 3F DIAGON 25W/830 SOFT UGR 596x596 28 3488 3000 >80 596x596x30 IP43 ↓ i
23830 3F DIAGON 25W/830 SOFT UGR 621x621 28 3488 3000 >80 621x621x30 IP43 ↓ i
23846 3F DIAGON 39W/930 SOFT UGR 621x621 3664 3000 >90 621x621x30 IP43 ↓ i
23842 3F DIAGON 39W/930 SOFT UGR 596x596 40 3664 3000 >90 596x596x30 IP43 ↓ i
23812 3F DIAGON 25W/840 SOFT UGR 596x596 28 3679 4000 >80 596x596x30 IP43 ↓ i
23819 3F DIAGON 25W/840 SOFT UGR 621x621 28 3679 4000 >80 621x621x30 IP43 ↓ i
23834 3F DIAGON 39W/940 SOFT UGR 596x596 40 3865 4000 >90 596x596x30 IP43 ↓ i
23838 3F DIAGON 39W/940 SOFT UGR 621x621 40 3865 4000 >90 621x621x30 IP43 ↓ i

Cableado DALI 220-240V 50-60Hz

Código Artículo W lm K CRI L x A x H IP
23828 3F DIAGON 25W/830 DALI SOFT UGR 596x596 28 3488 3000 >80 596x596x30 IP43 ↓ i
23832 3F DIAGON 25W/830 DALI SOFT UGR 621x621 28 3488 3000 >80 621x621x30 IP43 ↓ i
23844 3F DIAGON 39W/930 DALI SOFT UGR 596x596 40 3664 3000 >90 596x596x30 IP43 ↓ i
23848 3F DIAGON 39W/930 DALI SOFT UGR 621x621 40 3664 3000 >90 621x621x30 IP43 ↓ i
23814 3F DIAGON 25W/840 DALI SOFT UGR 596x596 28 3679 4000 >80 596x596x30 IP43 ↓ i
23821 3F DIAGON 25W/840 DALI SOFT UGR 621x621 28 3679 4000 >80 621x621x30 IP43 ↓ i
23836 3F DIAGON 39W/940 DALI SOFT UGR 596x596 40 3865 4000 >90 596x596x30 IP43 ↓ i
23840 3F DIAGON 39W/940 DALI SOFT UGR 621x621 40 3865 4000 >90 621x621x30 IP43 ↓ i

Cableado EP 220-240V 50-60Hz

Código Artículo W lm K CRI L x A x H IP
23827 3F DIAGON 25W/830 EP SOFT UGR 596x596 29 3488 3000 >80 596x596x30 IP43 ↓ i
23831 3F DIAGON 25W/830 EP SOFT UGR 621x621 29 3488 3000 >80 621x621x30 IP43 ↓ i
23843 3F DIAGON 39W/930 EP SOFT UGR 596x596 41 3664 3000 >90 596x596x30 IP43 ↓ i
23847 3F DIAGON 39W/930 EP SOFT UGR 621x621 41 3664 3000 >90 621x621x30 IP43 ↓ i
23813 3F DIAGON 25W/840 EP SOFT UGR 596x596 29 3679 4000 >80 596x596x30 IP43 ↓ i
23820 3F DIAGON 25W/840 EP SOFT UGR 621x621 29 3679 4000 >80 621x621x30 IP43 ↓ i
23835 3F DIAGON 39W/940 EP SOFT UGR 596x596 41 3865 4000 >90 596x596x30 IP43 ↓ i
23839 3F DIAGON 39W/940 EP SOFT UGR 621x621 41 3865 4000 >90 621x621x30 IP43 ↓ i
