3F Linux L

3F Linux - frontale

3F Linux L

Unità luminosa in acciaio zincato a caldo verniciato. Molle di fissaggio e ganci di sicurezza per un'installazione rapida. Lenti in metacrilato (PMMA) dalle molteplici distribuzioni luminose. Installabile sulle strutture 3F Linux S IP40 e IP54.
Accessori

3F Linux L BAT WD

650°C CE D ENEC HACCP IK06 IP40 SAFE FLICKER
3F Linux L BAT WD

Cablaggio ON-OFF 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20610 3F Linux L 40 LED BAT WD L1778 40 7079 4000 >80 1778x62x32 IP40 ↓ i
A20609 3F Linux L 50 LED BAT WD L1778 46 8180 4000 >80 1778x62x32 IP40 ↓ i
A20608 3F Linux L 60 LED BAT WD L1778 55.5 9805 4000 >80 1778x62x32 IP40 ↓ i

Cablaggio DALI 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20624 3F Linux L 40 LED DALI BAT WD L1778 40 7079 4000 >80 1778x62x32 IP40 ↓ i
A20623 3F Linux L 50 LED DALI BAT WD L1778 46 8180 4000 >80 1778x62x32 IP40 ↓ i
A20622 3F Linux L 60 LED DALI BAT WD L1778 55.5 9805 4000 >80 1778x62x32 IP40 ↓ i

3F Linux L UGR

650°C CE D ENEC HACCP IK06 IP40 SAFE FLICKER
3F Linux L UGR

Cablaggio ON-OFF 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20662 3F Linux L 40 LED UGR L1778 38.5 7064 4000 >80 1778x62x32 IP40 ↓ i
A20661 3F Linux L 50 LED UGR L1778 46 8163 4000 >80 1778x62x32 IP40 ↓ i
A20665 3F Linux L 40/940 LED UGR L1778 42 5439 4000 >90 1778x62x32 IP40 ↓ i
A20664 3F Linux L 50/940 LED UGR L1778 50 6286 4000 >90 1778x62x32 IP40 ↓ i

Cablaggio DALI 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20668 3F Linux L 40 LED DALI UGR L1778 38.5 7064 4000 >80 1778x62x32 IP40 ↓ i
A20667 3F Linux L 50 LED DALI UGR L1778 46 8163 4000 >80 1778x62x32 IP40 ↓ i
A20671 3F Linux L 40/940 LED DALI UGR L1778 42 5439 4000 >90 1778x62x32 IP40 ↓ i
A20670 3F Linux L 50/940 LED DALI UGR L1778 50 6286 4000 >90 1778x62x32 IP40 ↓ i

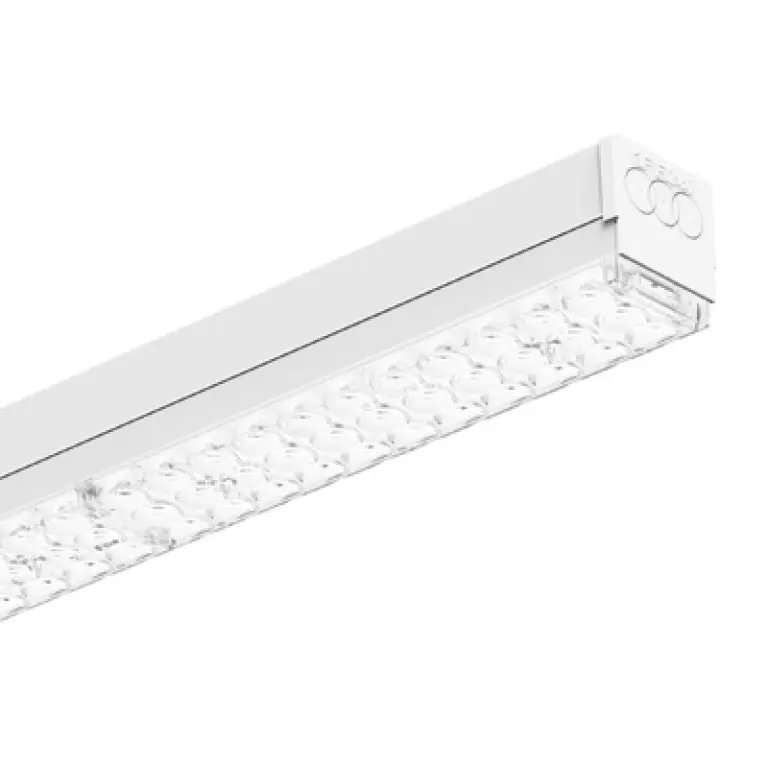

3F Linux L AS

650°C CE D ENEC HACCP IK06 IP40 SAFE FLICKER
3F Linux L AS

Cablaggio ON-OFF 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20747 3F Linux L 40 LED AS L1778 40 7108 4000 >80 1778x62x32 IP40 ↓ i
A20746 3F Linux L 50 LED AS L1778 46 8214 4000 >80 1778x62x32 IP40 ↓ i
A20745 3F Linux L 60 LED AS L1778 55.5 9846 4000 >80 1778x62x32 IP40 ↓ i
A20744 3F Linux L 85 LED AS L1778 84 14331 4000 >80 1778x62x32 IP40 ↓ i

Cablaggio DALI 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20752 3F Linux L 40 LED DALI AS L1778 40 7108 4000 >80 1778x62x32 IP40 ↓ i
A20751 3F Linux L 50 LED DALI AS L1778 46 8214 4000 >80 1778x62x32 IP40 ↓ i
A20750 3F Linux L 60 LED DALI AS L1778 55.5 9846 4000 >80 1778x62x32 IP40 ↓ i
A20749 3F Linux L 85 LED DALI AS L1778 84 14331 4000 >80 1778x62x32 IP40 ↓ i

3F Linux L BAT

650°C CE D ENEC HACCP IK06 IP40 SAFE FLICKER
3F Linux L BAT

Cablaggio ON-OFF 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20085 3F Linux L 40 LED BAT L1778 40 7100 4000 >80 1778x62x32 IP40 ↓ i
A20084 3F Linux L 50 LED BAT L1778 46 8206 4000 >80 1778x62x32 IP40 ↓ i
A20083 3F Linux L 60 LED BAT L1778 55.5 9836 4000 >80 1778x62x32 IP40 ↓ i

Cablaggio DALI 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20099 3F Linux L 40 LED DALI BAT L1778 40 7100 4000 >80 1778x62x32 IP40 ↓ i
A20098 3F Linux L 50 LED DALI BAT L1778 46 8206 4000 >80 1778x62x32 IP40 ↓ i
A20097 3F Linux L 60 LED DALI BAT L1778 55.5 9836 4000 >80 1778x62x32 IP40 ↓ i

3F Linux L Ampio

3F Linux L Ampio

Cablaggio ON-OFF 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20127 3F Linux L 40 LED AMPIO L1778 40 7086 4000 >80 1778x62x32 IP40 ↓ i
A20794 3F Linux L BK 40 LED AMPIO L1778 40 7086 4000 >80 1778x118x95 IP40 ↓ i
A20126 3F Linux L 50 LED AMPIO L1778 46 8189 4000 >80 1778x62x32 IP40 ↓ i
A20792 3F Linux L BK 50 LED AMPIO L1778 46 8189 4000 >80 1778x118x95 IP40 ↓ i
A20125 3F Linux L 60 LED AMPIO L1778 55.5 9815 4000 >80 1778x62x32 IP40 ↓ i
A20790 3F Linux L BK 60 LED AMPIO L1778 55.5 9815 4000 >80 1778x118x95 IP40 ↓ i
A20124 3F Linux L 85 LED AMPIO L1778 84 14287 4000 >80 1778x62x32 IP40 ↓ i
A20786 3F Linux L BK 85 LED AMPIO L1778 84 14287 4000 >80 1778x118x95 IP40 ↓ i

Cablaggio DALI 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20141 3F Linux L 40 LED DALI AMPIO L1778 40 7086 4000 >80 1778x62x32 IP40 ↓ i
A20795 3F Linux L BK 40 LED DALI AMPIO L1778 40 7086 4000 >80 1778x118x95 IP40 ↓ i
A20140 3F Linux L 50 LED DALI AMPIO L1778 46 8189 4000 >80 1778x62x32 IP40 ↓ i
A20793 3F Linux L BK 50 LED DALI AMPIO L1778 46 8189 4000 >80 1778x118x95 IP40 ↓ i
A20139 3F Linux L 60 LED DALI AMPIO L1778 55.5 9815 4000 >80 1778x62x32 IP40 ↓ i
A20791 3F Linux L BK 60 LED DALI AMPIO L1778 55.5 9815 4000 >80 1778x118x95 IP40 ↓ i
A20138 3F Linux L 85 LED DALI AMPIO L1778 84 14287 4000 >80 1778x62x32 IP40 ↓ i
A20787 3F Linux L BK 85 LED DALI AMPIO L1778 84 14287 4000 >80 1778x118x95 IP40 ↓ i

3F Linux L Iperconcentrato

650°C CE D ENEC HACCP IK06 IP40 SAFE FLICKER
3F Linux L Iperconcentrato

Cablaggio ON-OFF 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20685 3F Linux L 60 LED IPERCONC L1778 55.5 9380 4000 >80 1778x62x32 IP40 ↓ i
A20684 3F Linux L 85 LED IPERCONC L1778 84 13654 4000 >80 1778x62x32 IP40 ↓ i

Cablaggio DALI 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20699 3F Linux L 60 LED DALI IPERCONC L1778 55.5 9380 4000 >80 1778x62x32 IP40 ↓ i
A20698 3F Linux L 85 LED DALI IPERCONC L1778 84 13654 4000 >80 1778x62x32 IP40 ↓ i

3F Linux L Medio

3F Linux L Medio

Cablaggio ON-OFF 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20757 3F Linux L 40 LED MEDIO L1778 40 6991 4000 >80 1778x62x32 IP40 ↓ i
A20756 3F Linux L 50 LED MEDIO L1778 46 8079 4000 >80 1778x62x32 IP40 ↓ i
A20755 3F Linux L 60 LED MEDIO L1778 55.5 9684 4000 >80 1778x62x32 IP40 ↓ i
A20754 3F Linux L 85 LED MEDIO L1778 84 14096 4000 >80 1778x62x32 IP40 ↓ i

Cablaggio DALI 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20761 3F Linux L 50 LED DALI MEDIO L1778 8079 4000 >80 1778x62x32 IP54 ↓ i
A20762 3F Linux L 40 LED DALI MEDIO L1778 40 6991 4000 >80 1778x62x32 IP40 ↓ i
A20760 3F Linux L 60 LED DALI MEDIO L1778 55.5 9684 4000 >80 1778x62x32 IP40 ↓ i
A20759 3F Linux L 85 LED DALI MEDIO L1778 84 14096 4000 >80 1778x62x32 IP40 ↓ i

3F Linux L Concentrato

650°C CE D ENEC HACCP IK06 IP40 SAFE FLICKER
3F Linux L Concentrato

Cablaggio ON-OFF 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20167 3F Linux L 60 LED CONC L1778 55.5 9623 4000 >80 1778x62x32 IP40 ↓ i
A20166 3F Linux L 85 LED CONC L1778 84 14007 4000 >80 1778x62x32 IP40 ↓ i

Cablaggio DALI 220-240V 50-60Hz

codice articolo W lm K CRI L x A x H IP
A20181 3F Linux L 60 LED DALI CONC L1778 55.5 9623 4000 >80 1778x62x32 IP40 ↓ i
A20180 3F Linux L 85 LED DALI CONC L1778 84 14007 4000 >80 1778x62x32 IP40 ↓ i
