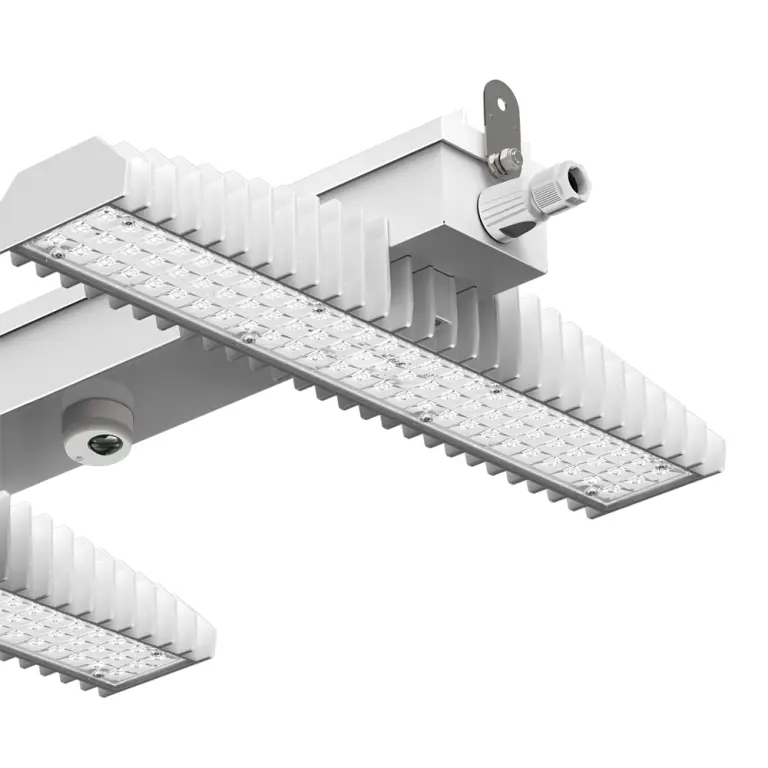

3F LEM High Output Wireless

Wide, medium, concentrated symmetric elliptical distribution. Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0 (page §ISF§).

Linear LED modules. Colour initial tolerance (MacAdam): SDCM 3.

Passive modular heatsinks in die-casted aluminium, painted in white colour. To optimize the thermal management of the LED module, the heatsinks are oversized and provided with self-cleaning of cooling fins. Wiring body in aluminium and galvanised steel anchored solidly to the sinks and thermally separated. 3F Lens lenses with high luminous efficiency, transparent methacrylate (PMMA), fixed to the

In compliance with EN 60598-1. Compliance with the EN 60598-2-22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. Quick connection via 3/5 P connector. Power unit positioned on a separate compartment by the LED module to ensure optimum temperatures of cabling components, to be inspectable and

Ambient temperature from -30°C to +55°C. Dry, dusty indoor environments, subject to occasional water splashes. Commercial, industrial and sporting environments (with no high-flying balls), as well as warehouses. Environments in which it is necessary a total protection against falling fragments (eg environments with foodstuffs or machines with moving parts or with extreme temperature changes), use

The DALI products can be controlled with 3F Easy Dim (page §GM266§) or 3F Smart Dimming technology (page §GM272§).

Fixture not suitable for cold stores with an ambient temperature <0°C and/or relative humidity >85%.
