FAM_3F Linux D

3F Linux D

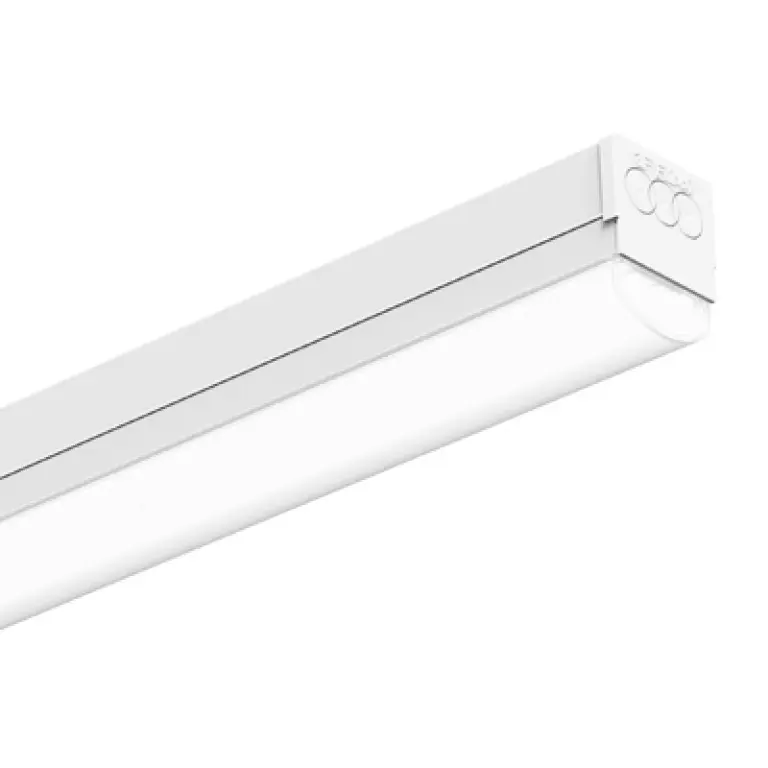

Body made of hot-dip galvanised steel, finished in white polyester paint, with stainless steel fixing springs and safety hooks. Curved diffuser made of opal polycarbonate (PC), UV-stabilised. This light unit must be installed on 3F Linux S IP40 structures
3F Linux S IP40 3F Linux L 3F Linux D 3F Linux DR 3F Linux DT 3F Linux Track

3F Linux D

850°C CE D DRIVER SELV ENEC HACCP IK06 IP40 1j SAFE FLICKER
3F Linux D

Wiring ON-OFF 220-240V 50-60Hz

Code Article W lm K CRI L x A x H IP
A20336 3F Linux D 2x22 LED L1778 49 6046 4000 >80 1778x62x47 IP40 ↓ i
A20335 3F Linux D 2x30 LED L1778 66 8038 4000 >80 1778x62x47 IP40 ↓ i

Wiring DALI 220-240V 50-60Hz

Code Article W lm K CRI L x A x H IP
A20350 3F Linux D 2x22 LED DALI L1778 49 6046 4000 >80 1778x62x47 IP40 ↓ i
A20349 3F Linux D 2x30 LED DALI L1778 66 8038 4000 >80 1778x62x47 IP40 ↓ i
