FAM_3F Linux DR

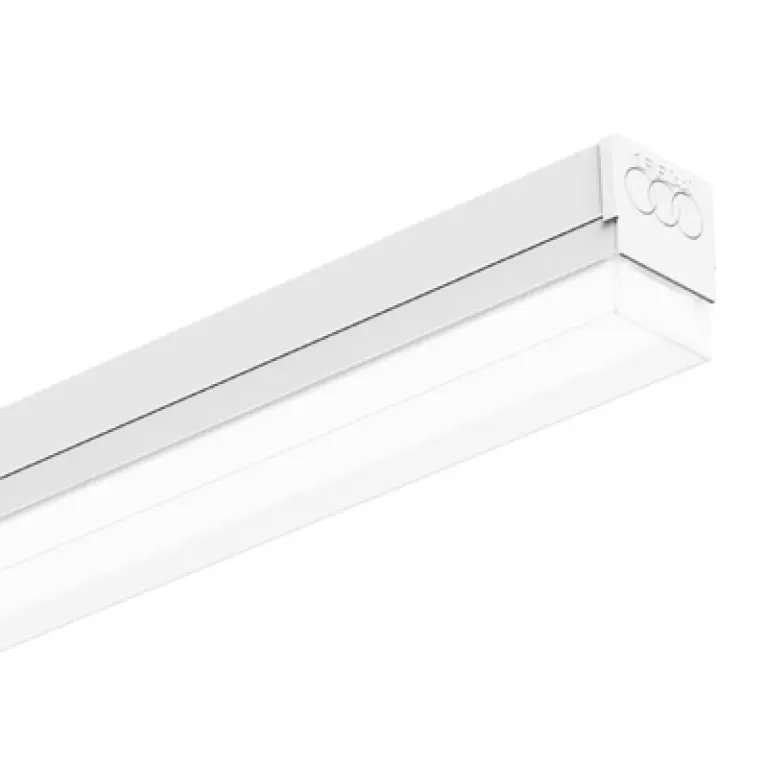

3F Linux DR

Body made of hot-dip galvanised steel, finished in white polyester paint, with stainless steel fixing springs and safety hooks. Rectangular diffuser made of opal polycarbonate (PC), UV-stabilised. This light unit must be installed on 3F Linux S IP40 structures
3F Linux S IP40 3F Linux L 3F Linux D 3F Linux DR 3F Linux DT 3F Linux Track

3F Linux DR

850°C CE D DRIVER SELV ENEC HACCP IK06 IP40 1j SAFE FLICKER
3F Linux DR

Wiring ON-OFF 220-240V 50-60Hz

Code Article W lm K CRI L x A x H IP
A20512 3F Linux DR 2x22 LED L1778 49 6062 4000 >80 1778x62x47 IP40 ↓ i
A20511 3F Linux DR 2x30 LED L1778 66 8059 4000 >80 1778x62x47 IP40 ↓ i

Wiring DALI 220-240V 50-60Hz

Code Article W lm K CRI L x A x H IP
A20526 3F LINUX DR 2X22 LED DALI L1778 49 6062 4000 >80 1778x62x47 IP40 ↓ i
A20525 3F Linux DR 2x30 LED DALI L1778 66 8059 4000 >80 1778x62x47 IP40 ↓ i

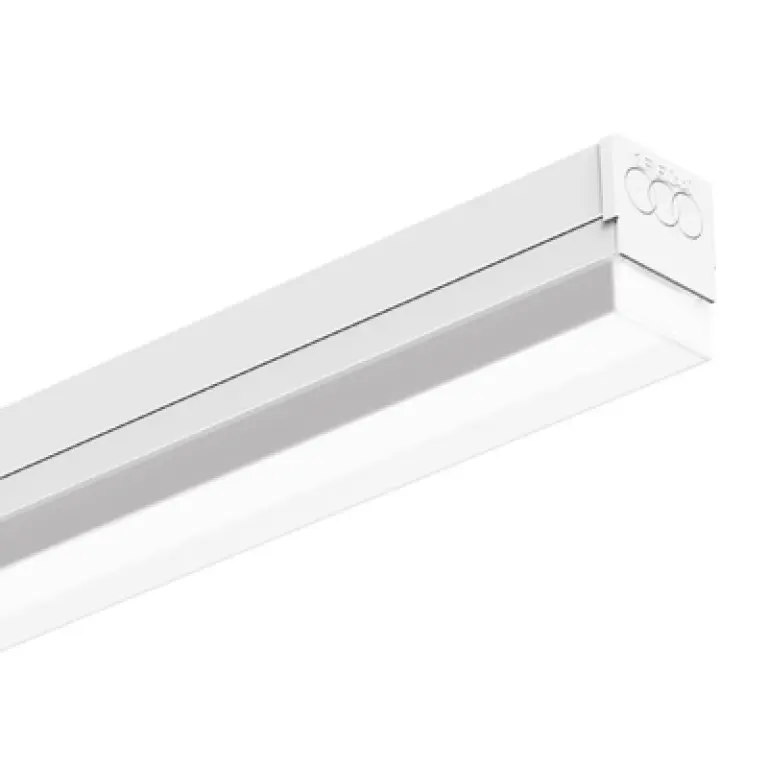

3F Linux DR AS

850°C CE D DRIVER SELV ENEC HACCP IK06 IP40 1j SAFE FLICKER
3F Linux DR AS

Wiring ON-OFF 220-240V 50-60Hz

Code Article W lm K CRI L x A x H IP
A20674 3F Linux DR 2x30 LED AS L1778 66 6569 4000 >80 1778x62x47 IP40 ↓ i

Wiring DALI 220-240V 50-60Hz

Code Article W lm K CRI L x A x H IP
A20679 3F Linux DR 2x30 LED DALI AS L1778 66 6569 4000 >80 1778x62x47 IP40 ↓ i
