Category

FAM_3F Linux DT

3F Linux DT

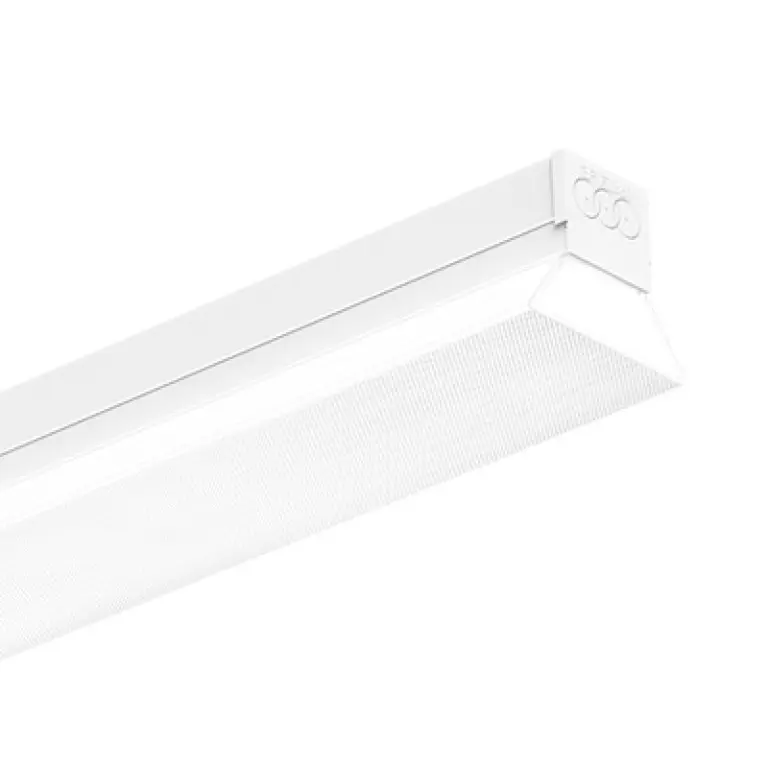

Body made of hot-dip galvanised steel, finished in white polyester paint, with stainless steel fixing springs and safety hooks. Trapezoidal diffuser made of methacrylate (PMMA), with a microprismatic finish on the flat surface and an opal finish on the sides. Opal methacrylate (PMMA) filter for uniform light distribution. This light unit must be installed on 3F Linux S IP40 structures
3F Linux S IP40 3F Linux L 3F Linux D 3F Linux DR 3F Linux DT 3F Linux Track

3F Linux DT UGR

APPARECCHIO ADATTO AGLI UFFICI 850°C CE D DRIVER SELV HACCP ICE IK06 IP40 1j SAFE FLICKER
3F Linux DT UGR

Wiring ON-OFF 220-240V 50-60Hz

Code Article W lm K CRI L x A x H IP
A20766 3F Linux DT 2x15 LED UGR L1778 34 4393 4000 >80 1778x118x95 IP40 ↓ i
A20767 3F Linux DT 2x30 LED UGR L1778 66 8421 4000 >80 1778x118x95 IP40 ↓ i

Wiring DALI 220-240V 50-60Hz

Code Article W lm K CRI L x A x H IP
A20768 3F Linux DT 2x15 LED DALI UGR L1778 34 4393 4000 >80 1778x118x95 IP40 ↓ i
A20769 3F Linux DT 2x30 LED DALI UGR L1778 66 8421 4000 >80 1778x118x95 IP40 ↓ i
